Components and Components Location: Component

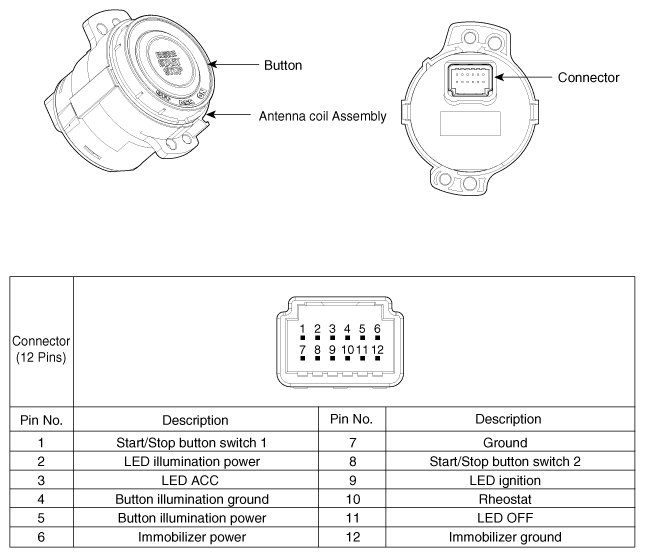

Fig 1: Start Stop Button Components Connector End View
G10606132Courtesy of HYUNDAI MOTOR AMERICA
