Circuit Diagram

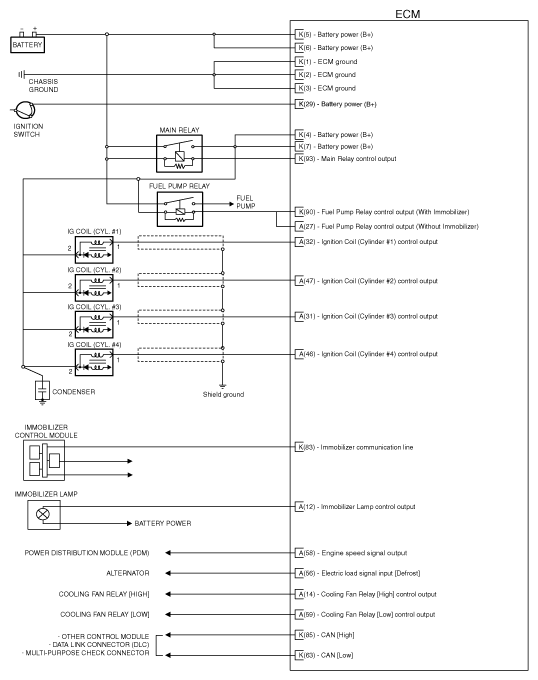

Fig 1: ECM Circuit Diagram (1 Of 4)
G10607901Courtesy of HYUNDAI MOTOR AMERICA

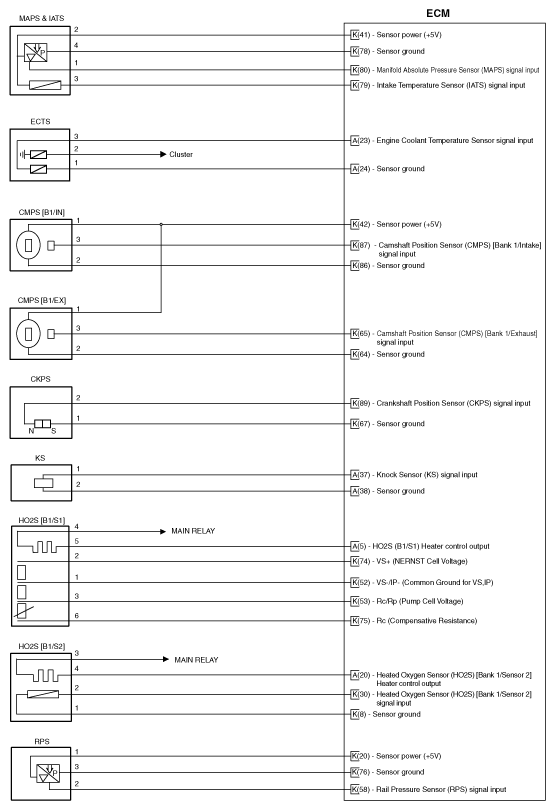

Fig 2: ECM Circuit Diagram (2 Of 4)
G10607902Courtesy of HYUNDAI MOTOR AMERICA

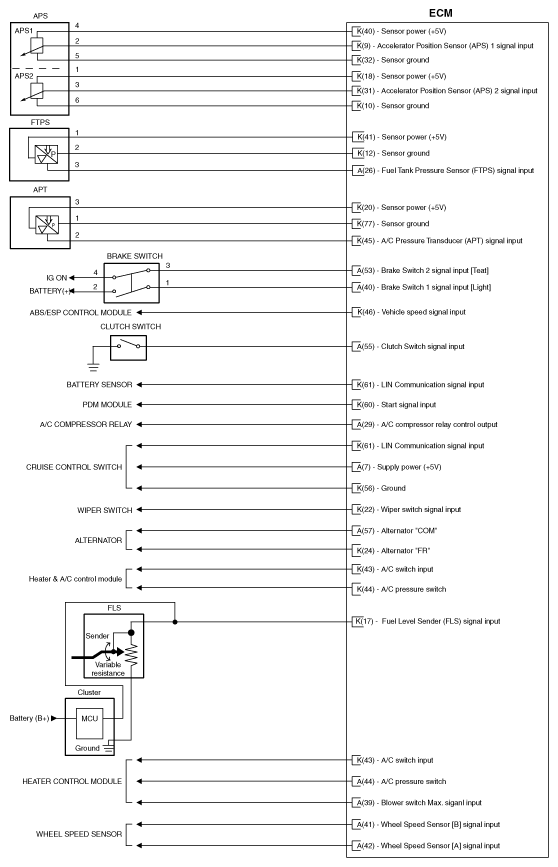

Fig 3: ECM Circuit Diagram (3 Of 4)
G10607903Courtesy of HYUNDAI MOTOR AMERICA

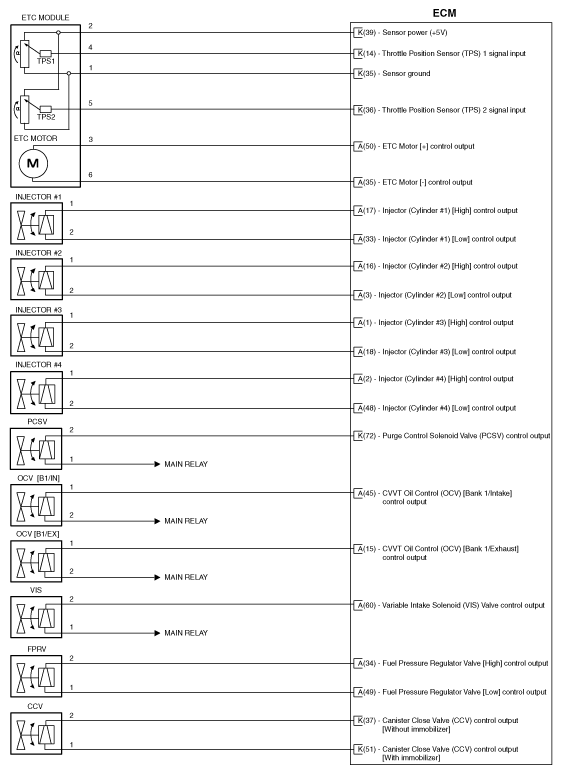

Fig 4: ECM Circuit Diagram (4 Of 4)
G10607904Courtesy of HYUNDAI MOTOR AMERICA
