Components Location

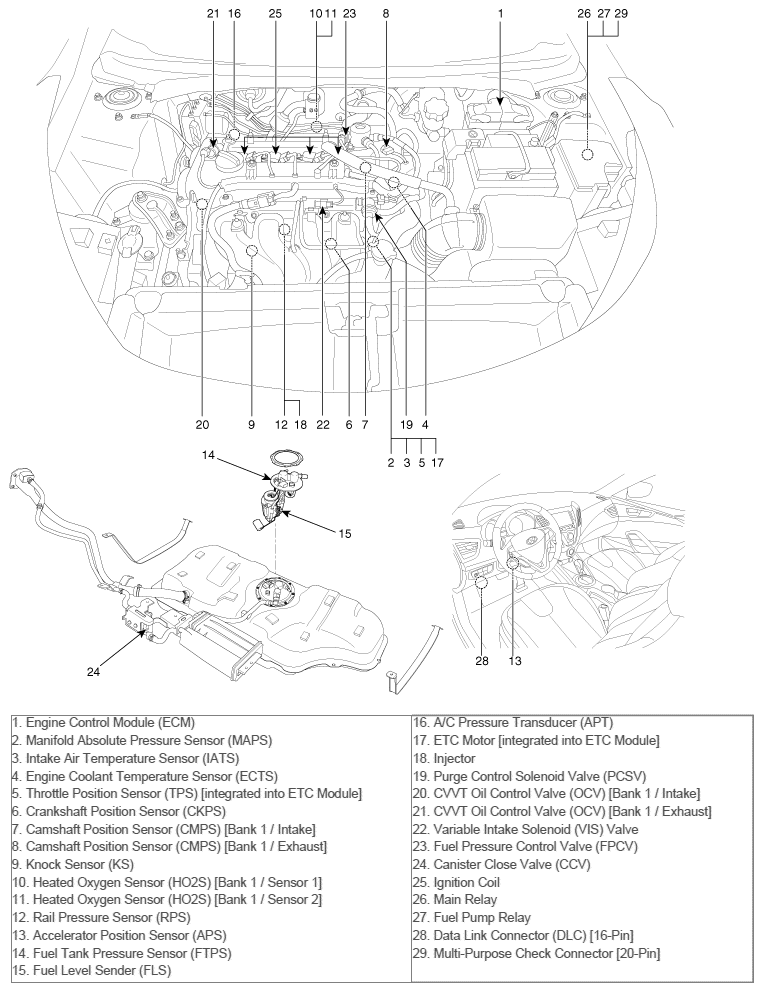

Fig 1: Engine Control System Components Locations (1 Of 4)
G10607896Courtesy of HYUNDAI MOTOR AMERICA

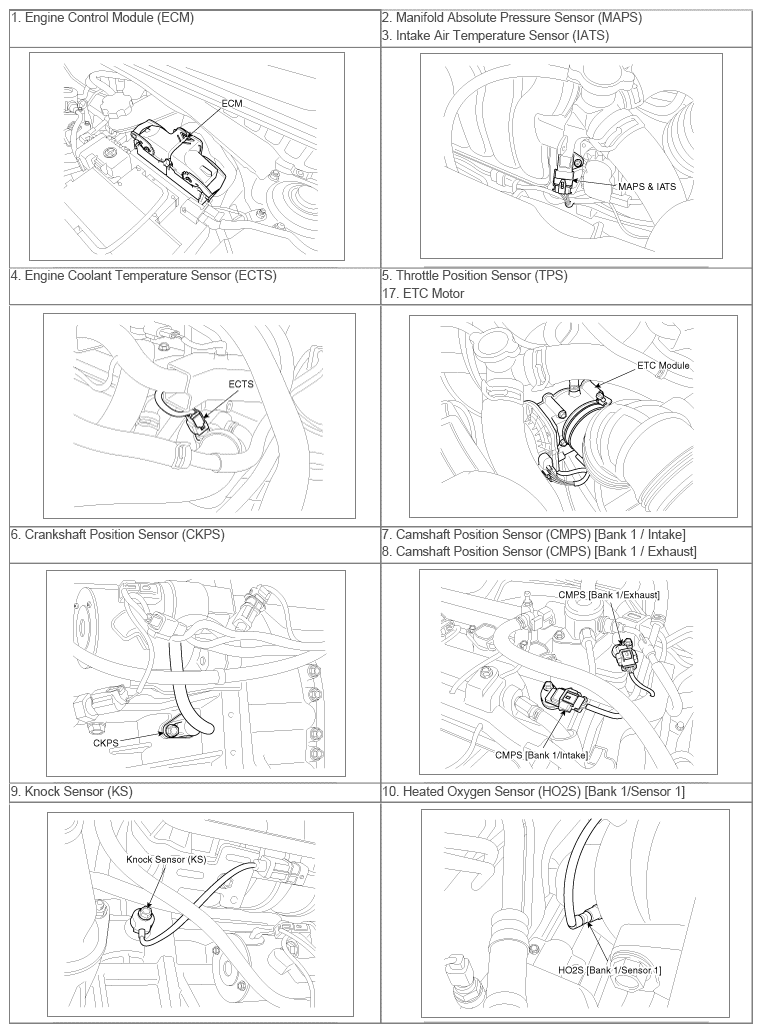

Fig 2: Engine Control System Related Components Locations (2 Of 4)
G10607897Courtesy of HYUNDAI MOTOR AMERICA

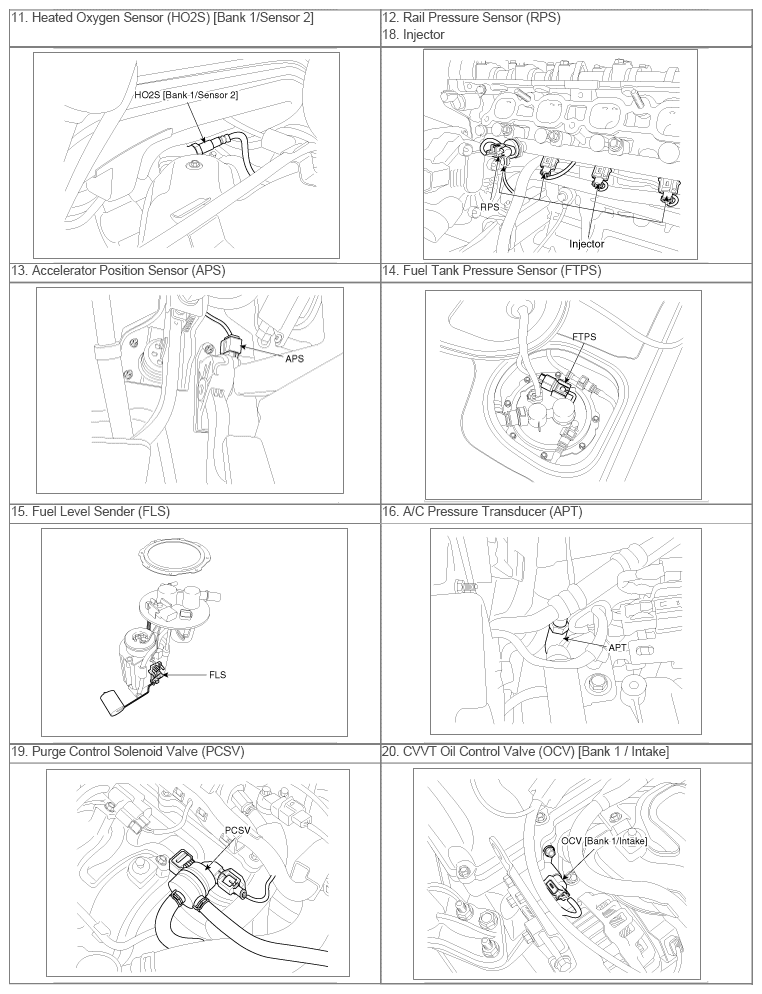

Fig 3: Engine Control System Related Components Locations (3 Of 4)
G10607898Courtesy of HYUNDAI MOTOR AMERICA

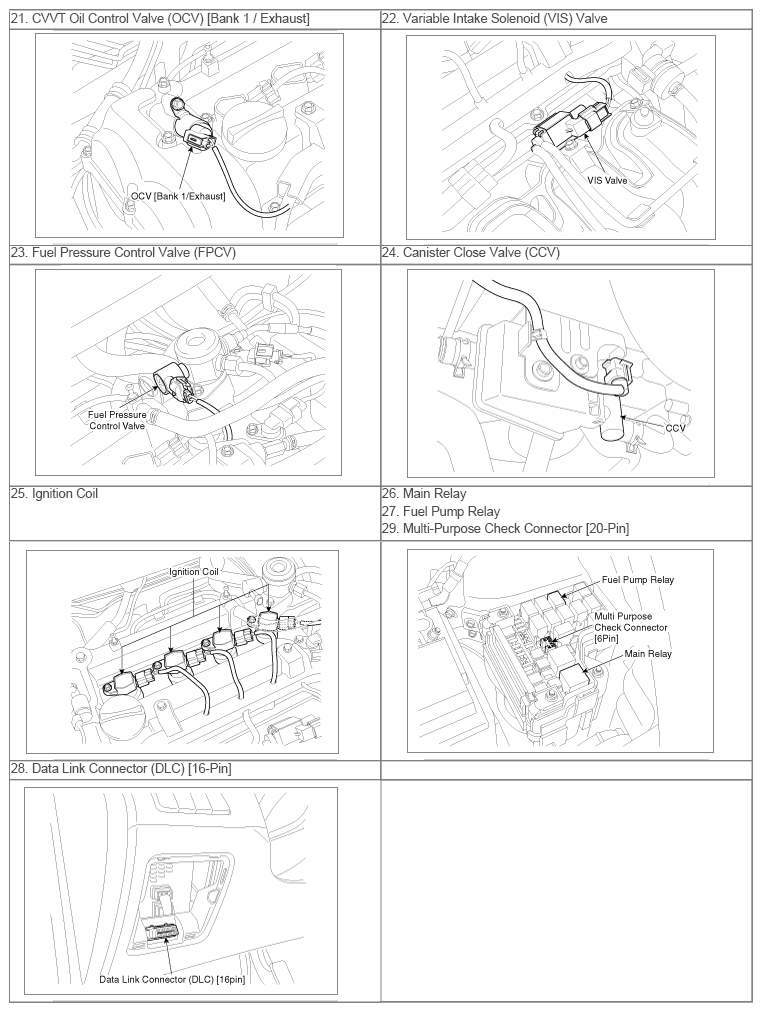

Fig 4: Engine Control System Related Components Locations (4 Of 4)
G10607899Courtesy of HYUNDAI MOTOR AMERICA
