Circuit Diagram

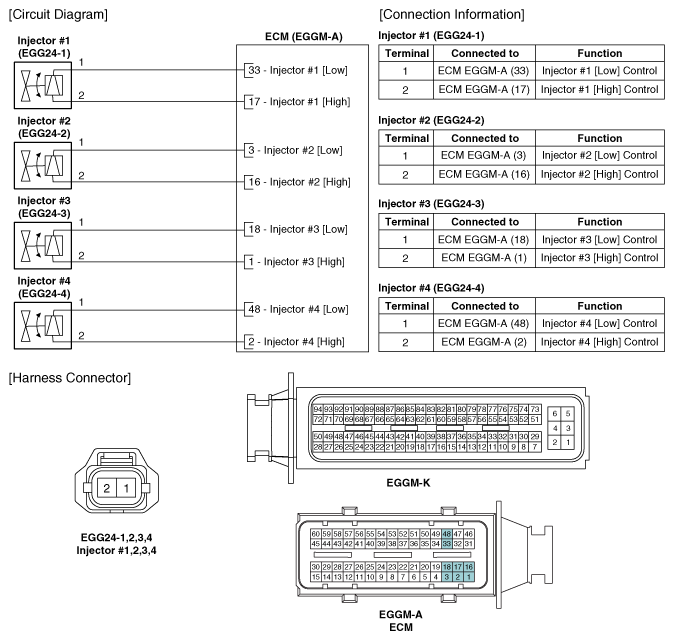

Fig 1: Injectors Circuit Diagram With Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
