On-vehicle Inspection: Notes

Spark Test

1. Remove the engine cover (A).
   Fig 1: Identifying Engine Cover

   Courtesy of HYUNDAI MOTOR AMERICA
2. Disconnect the ignition coil connectors (A).
   Fig 2: Identifying Ignition Coil Connectors

   Courtesy of HYUNDAI MOTOR AMERICA
   NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
   Fig 3: Pulling Lock Pin

   Courtesy of HYUNDAI MOTOR AMERICA
3. Remove the ignition coils (A).
   Fig 4: Removing Ignition Coils

   Courtesy of HYUNDAI MOTOR AMERICA
4. Disconnect the injector connector or extension connector (A).
   Fig 5: Identifying Extension Connector

   Courtesy of HYUNDAI MOTOR AMERICA
5. Using a spark plug socket, remove the spark plug.
6. Install the spark plug to the ignition coil.
7. Ground the spark plug to the engine.
   Fig 6: Installing Spark Plug To Ignition Coil

   Courtesy of HYUNDAI MOTOR AMERICA
8. Check if spark occurs while engine is being cranked.
   NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the fuel pump connector.
   Crank the engine for no more than 5 ~ 10 seconds.
9. Inspect all the spark plugs.
10. Using a spark plug socket, install the spark plug.
11. Install the ignition coil.

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    NOTE: When inserting ignition coil into the cylinder head cover for spark plug to be inserting ignition coil, the sealing cap of ignition coil must be mated totally with inner side of cylinder head.
12. Reconnect the ignition coil connectors.

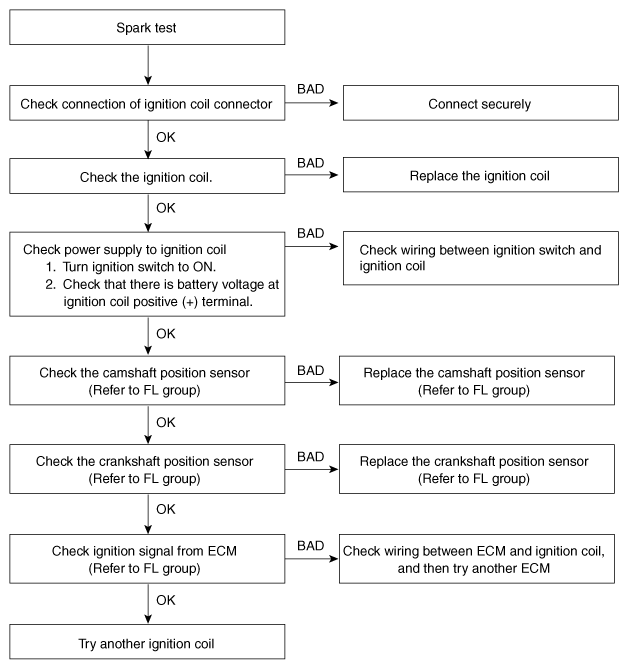

Fig 7: Spark Test Procedure Flow Chart

Courtesy of HYUNDAI MOTOR AMERICA
