Signal Waveform

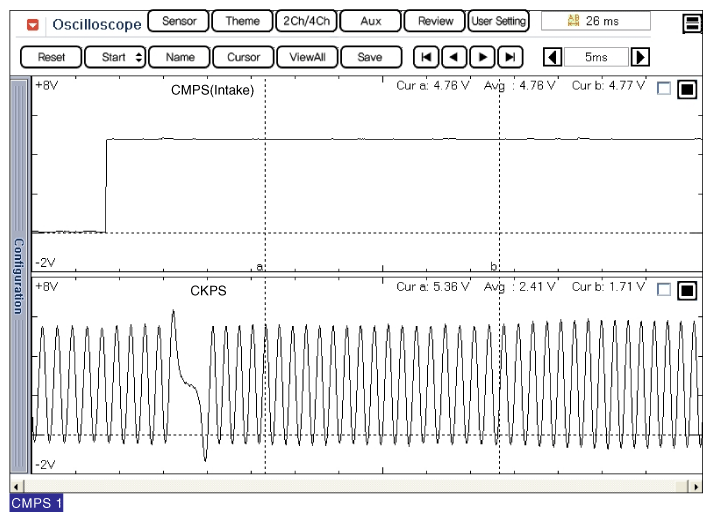

Fig 1: Scantool Display - Signal Waveform Of Camshaft And Crankshaft Position Sensor (1 Of 2)
G12016397Courtesy of HYUNDAI MOTOR AMERICA

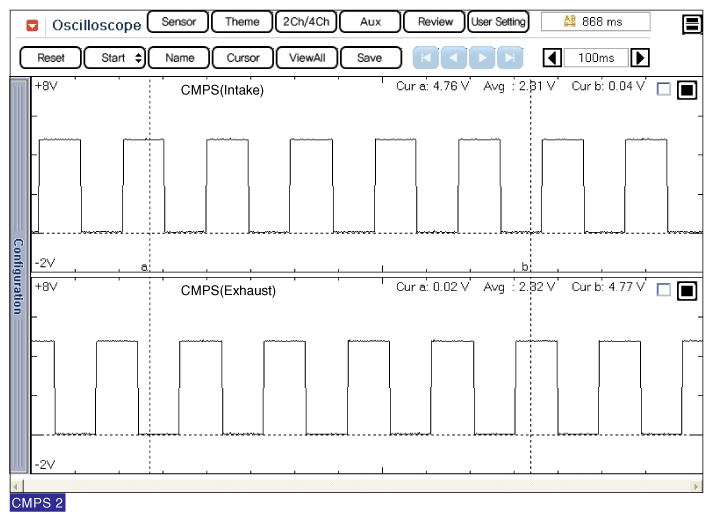

Fig 2: Scantool Display - Signal Waveform Of Camshaft And Crankshaft Position Sensor (2 Of 2)
G12016398Courtesy of HYUNDAI MOTOR AMERICA
