Circuit Diagram: A/T

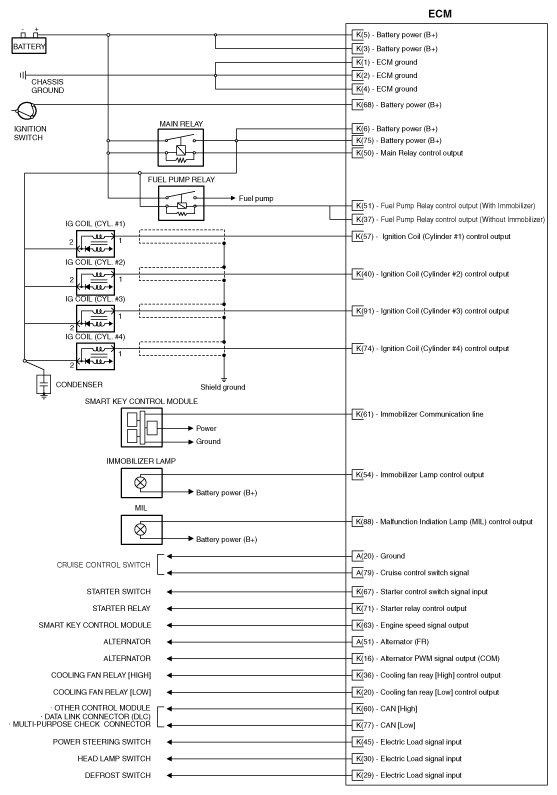

Fig 1: Engine Control Module Diagram - A/T (1 Of 4)
G12016361Courtesy of HYUNDAI MOTOR AMERICA

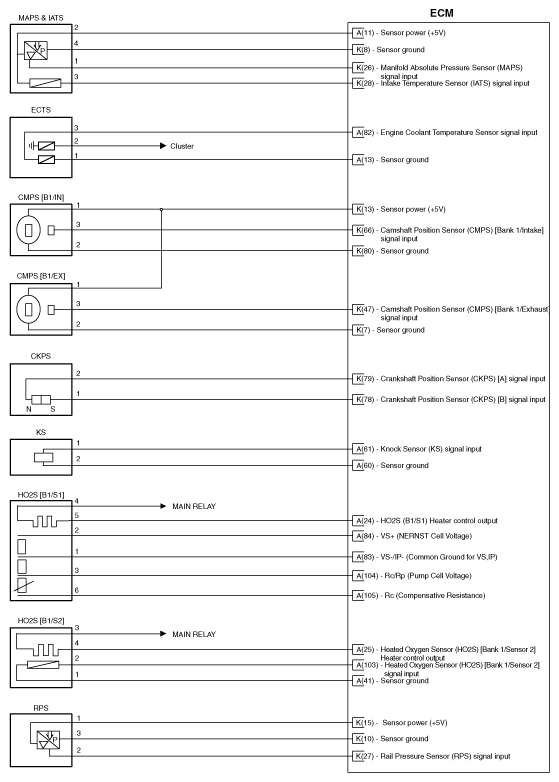

Fig 2: Engine Control Module Diagram - A/T (2 Of 4)
G12016362Courtesy of HYUNDAI MOTOR AMERICA

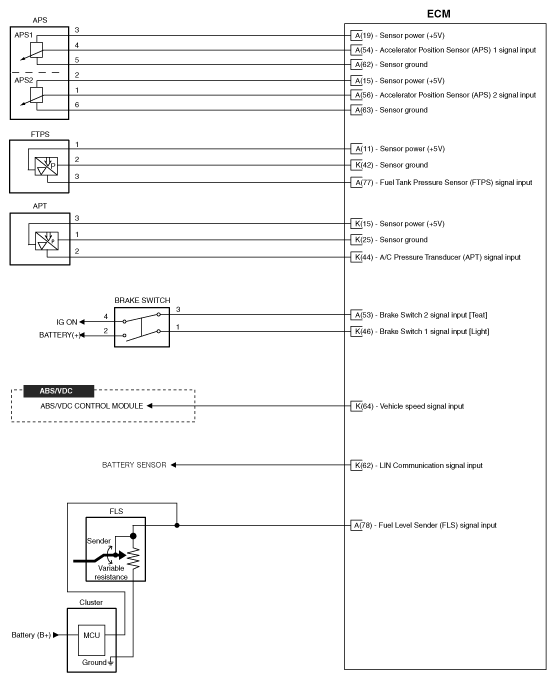

Fig 3: Engine Control Module Diagram - A/T (3 Of 4)
G12016363Courtesy of HYUNDAI MOTOR AMERICA

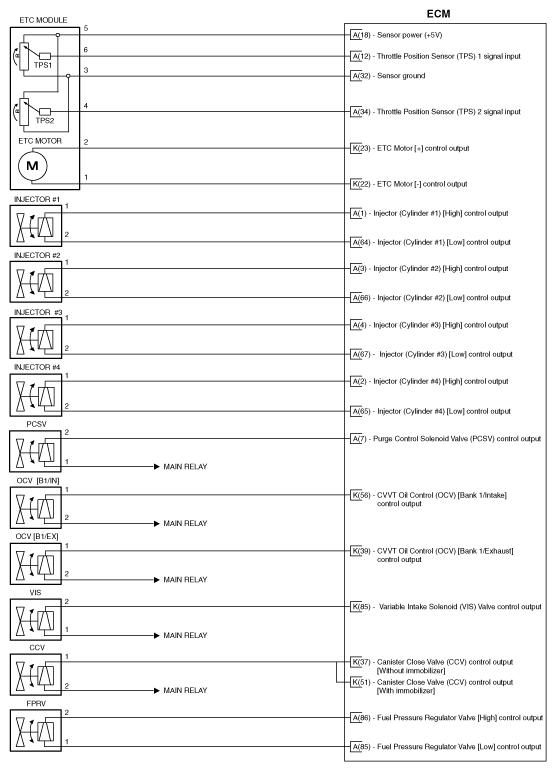

Fig 4: Engine Control Module Diagram - A/T (4 Of 4)
G12016364Courtesy of HYUNDAI MOTOR AMERICA
