Circuit Diagram: A/T

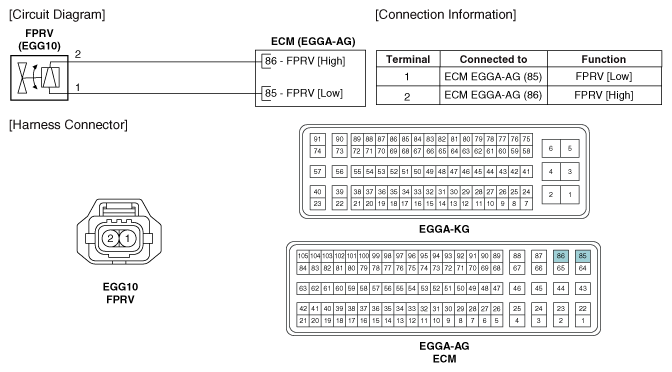

Fig 1: Fuel Pressure Regulator Valve Diagram (A/T)

G12016464

Courtesy of HYUNDAI MOTOR AMERICA
