Description And Operation: Description

Variable Intake manifold Solenoid (VIS) valve is installed on the intake manifold. The VIS valve controls the vacuum modulator which activates a valve in the intake manifold. The ECM opens or closes this valve according to engine condition (Refer to below table).

Courtesy of

ENGINE CONDITIONS AND OPERATIONS

Engine condition	VIS valve	Operation
Medium speed	Closed	Increasing engine performance in low engine speed by reducing intake interference among cylinders
Low/High speed	Open	Minimizing intake resistance by shortening intake manifold length and increasing area of air entrance

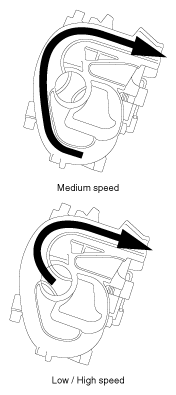

Fig 1: Checking Variable Intake Manifold Solenoid Speed (Closed And Open)

Courtesy of HYUNDAI MOTOR AMERICA
