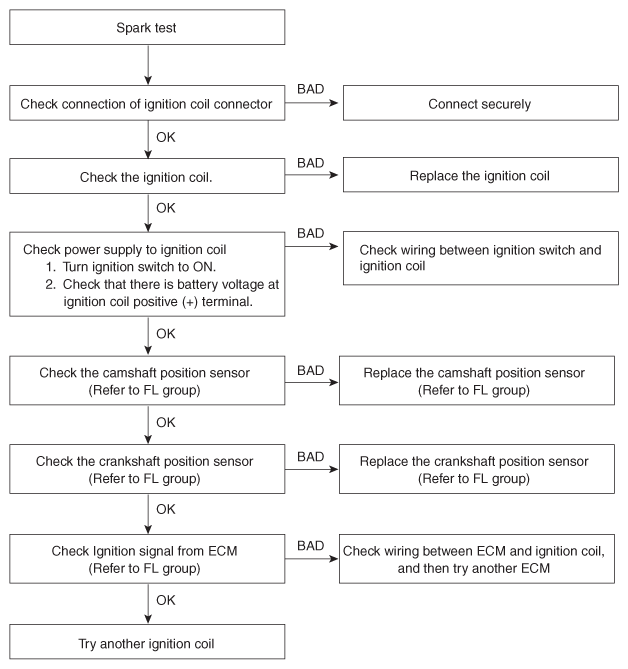

Spark Test
- Disconnect the connectors (A) and then ignition coils (B).
- Disconnect the injector extension connector for fuel not to be injected while checking.
- Using a spark plug socket, remove the spark plug.
- Install the spark plug to the ignition coil.
- Ground the spark plug to the engine.
- Check if spark occurs while engine is being cranked.NOTE: Do not crank engine for more then 5~10 seconds.
- Inspect all the spark plugs.
- Using a spark plug socket, install the spark plug.
- Install the ignition coil.
Tightening torque:
9.8 ~ 11.8 Nm (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
- Reconnect the ignition coil connector.
