Repair Procedures: Removal

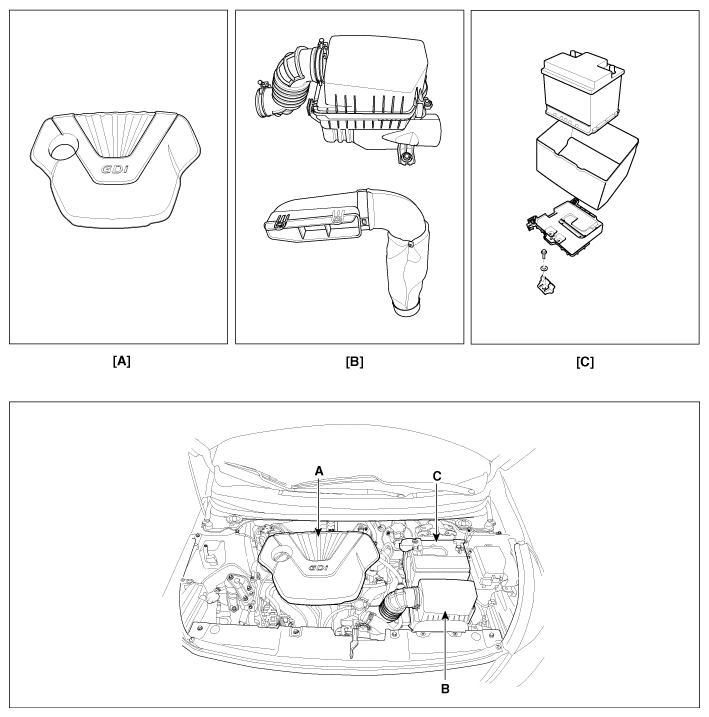

Remove the following items;
- Engine cover (A).
- Air cleaner assembly and air duct (B).
  (Refer to CYLINDER HEAD ASSEMBLY )
- Battery and battery tray (C).
  (Refer to "CYLINDER HEAD ASSEMBLY " )
Courtesy of HYUNDAI MOTOR AMERICA
Remove the ground line after removing the bolt (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the control cable (C) after removing the nut (A) and the bolt (B).
Tightening Torque:

(A) 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

(B) 14.7 ~ 21.6 N.m(1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the wiring clips (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the solenoid valve connector and inhibitor switch connector wiring mounting bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the hood assembly.
(Refer to HOOD .)
Remove the cowl top cover.
(Refer to COWL TOP COVER .)
Remove the wiper motor.
(Refer to WINDSHIELD WIPER/WASHER SYSTEM .)
Remove the cowl complete assembly panel (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using the engine support fixture (Support SST No.: 09200-2S200, Adapter SST No.: 09200-2S100, Beam SST No.: 09200-38001/3N000), hold the engine and transaxle assembly safely.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter motor mounting bolt (B-2ea).
Tightening Torque:

(A, B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the mounting cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the automatic transaxle mounting support bracket bolt (A).
Tightening Torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the drive shaft assembly.
(Refer to DRIVESHAFT ASSEMBLY .)
Remove the bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the roll rod support bracket (C) after removing bolt (A, B).
Tightening Torque:

(A) 49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)

(B) 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the dust cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the torque converter mounting bolt (A-4ea) with rotating the crankshaft.
Tightening Torque:

45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the drive shaft cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the lower mounting bolts (A-4ea, B-1ea) of lower part of the transaxle, and the left side cover and remove the transaxle assembly by supporting it with a jack.
CAUTION:
- Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.
Tightening torque:

(A) 43 ~ 49 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

(B) 43 ~ 55 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
