Inspection flow

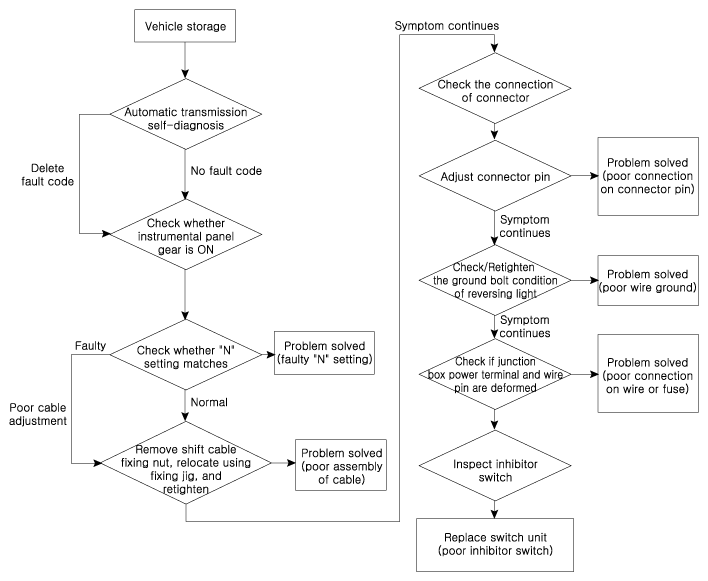

Fig 1: Inhibitor Switch Inspection Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
