Circuit Diagram

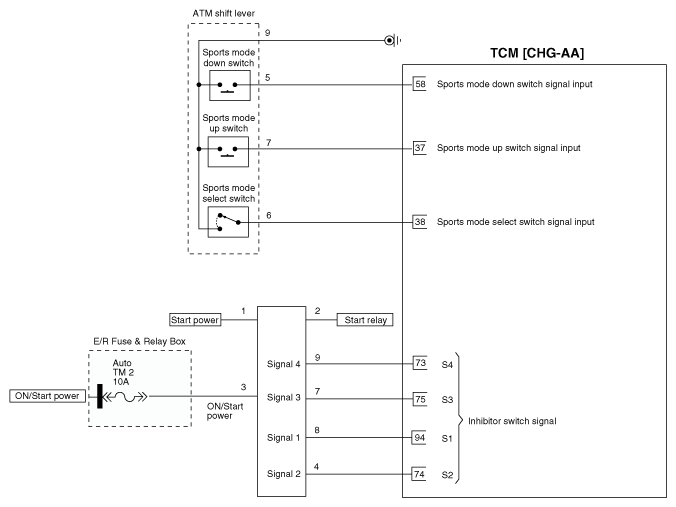

Fig 1: Transaxle Control Module Diagram (1 Of 2)
G12019020Courtesy of HYUNDAI MOTOR AMERICA

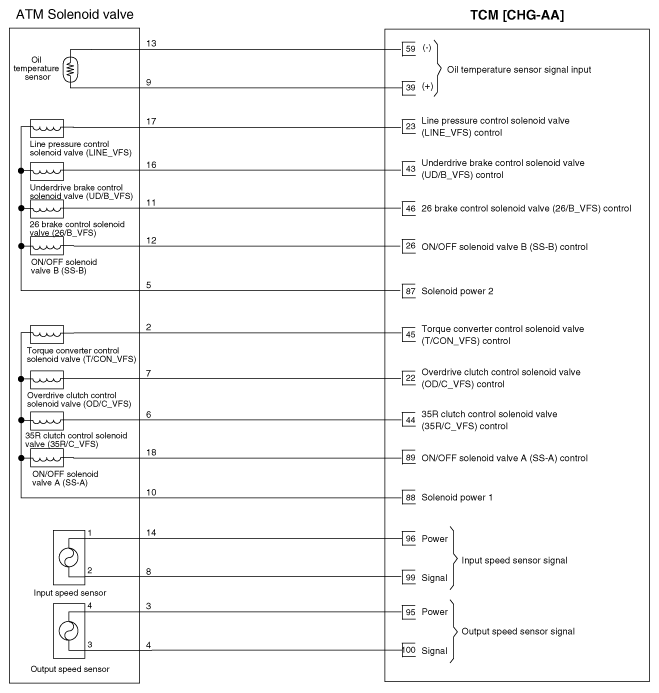

Fig 2: Transaxle Control Module Diagram (2 Of 2)
G12019021Courtesy of HYUNDAI MOTOR AMERICA
