Components And Components Location: Components

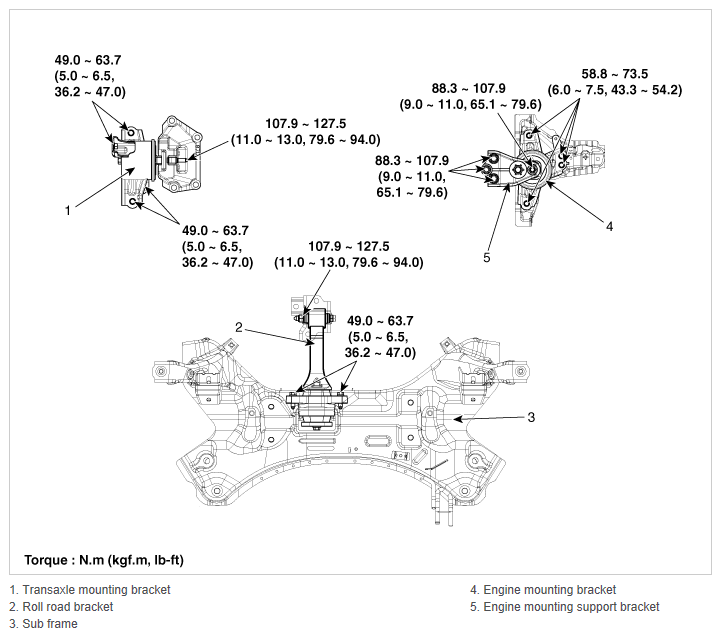

Fig 1: Engine Mounting Components With Torque Specification
G12086968Courtesy of HYUNDAI MOTOR AMERICA
