ESCL Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "ESCL STATUS INFO".

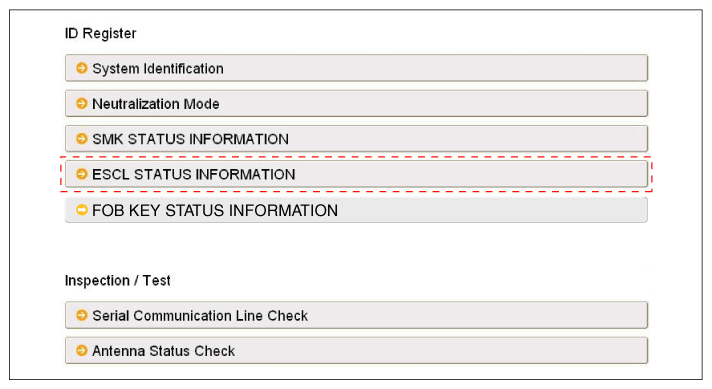

Fig 1: Scantool Display - ID Register
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Scantool Display - ESCL Status Information
Courtesy of HYUNDAI MOTOR AMERICA
