Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "Neutralization mode".

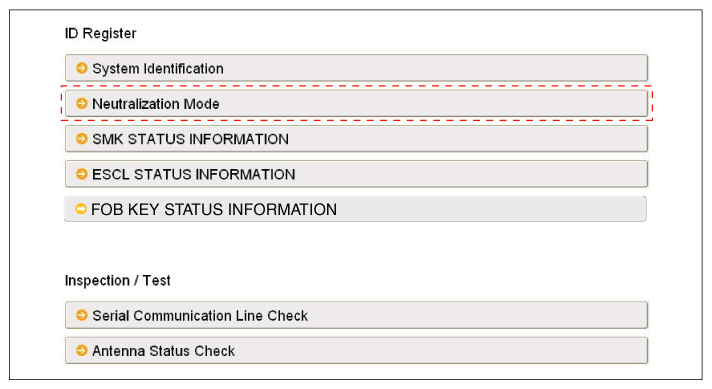

Fig 1: Scantool Display - ID Register
Courtesy of HYUNDAI MOTOR AMERICA

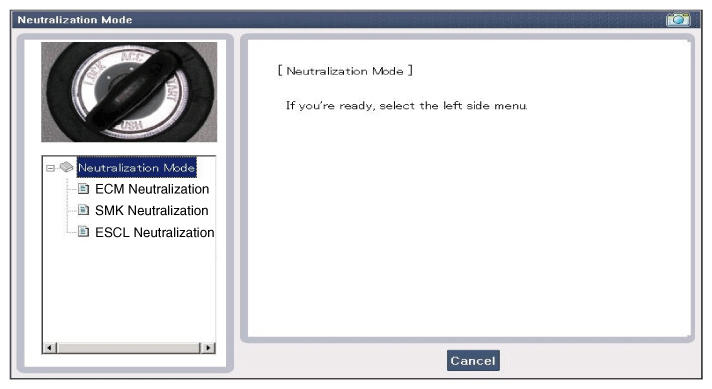

Fig 2: Scantool Display - Neutralization Mode
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Scantool Display - ECM Neutralization
Courtesy of HYUNDAI MOTOR AMERICA

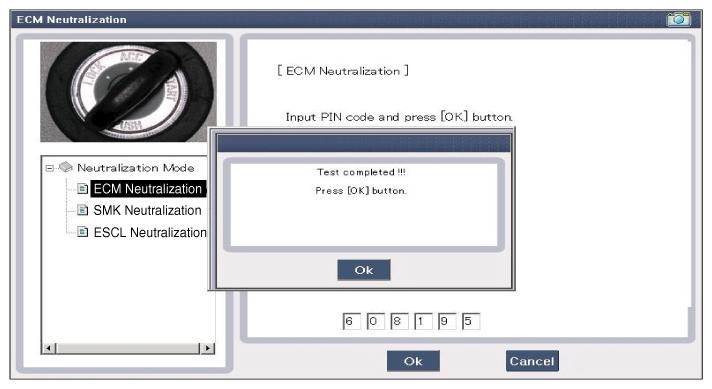

Fig 4: Scantool Display - Test Completed
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Scantool Display - SMK Neutralization
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Scantool Display - SMK Neutralization (With Pin Code)
Courtesy of HYUNDAI MOTOR AMERICA

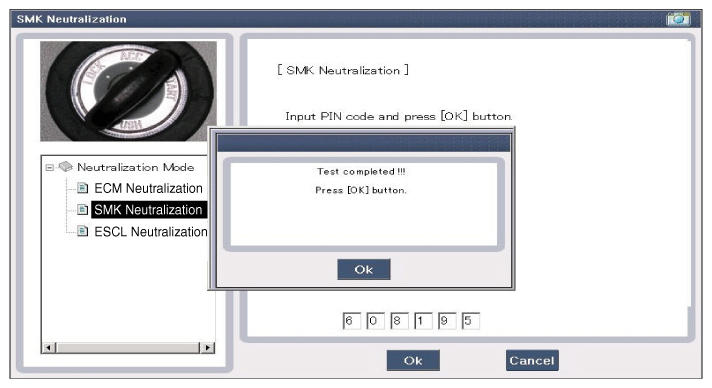

Fig 7: Scantool Display - Test Completed
Courtesy of HYUNDAI MOTOR AMERICA

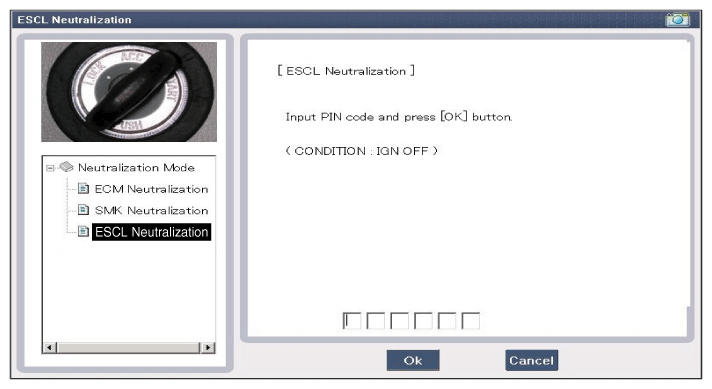

Fig 8: Scantool Display - ESCL Neutralization
Courtesy of HYUNDAI MOTOR AMERICA

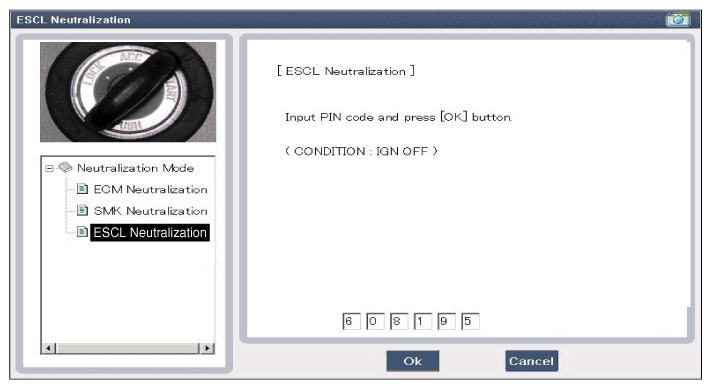

Fig 9: Scantool Display - ESCL Neutralization (With Pin Code)
Courtesy of HYUNDAI MOTOR AMERICA

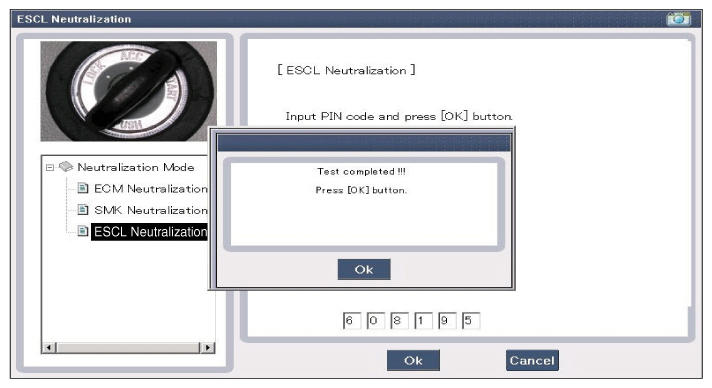

Fig 10: Scantool Display - Test Completed
Courtesy of HYUNDAI MOTOR AMERICA
