Component (1): Notes

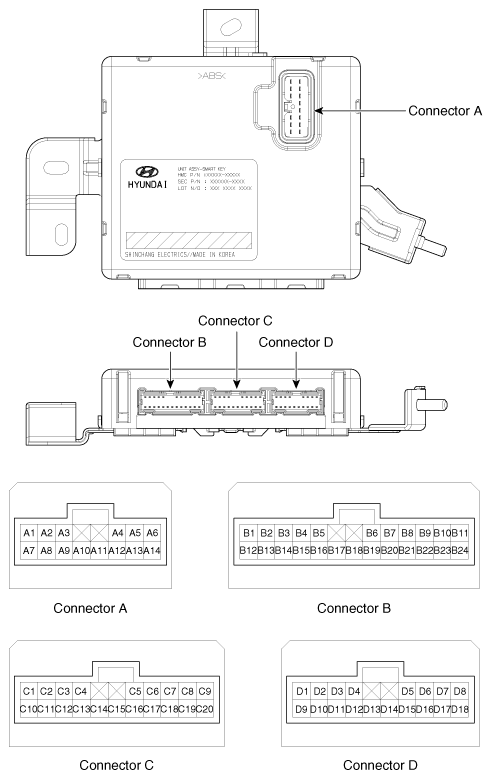

Fig 1: Smart Key Unit Connectors Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
