Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

Fig 2: Scantool Display - ID Register
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

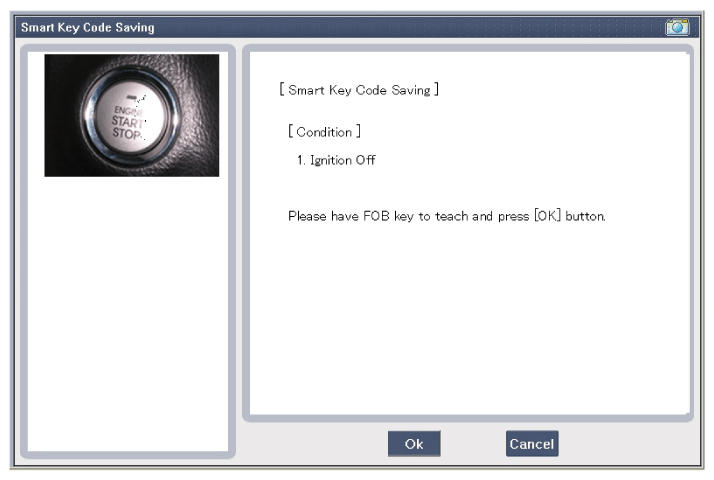

Fig 3: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA

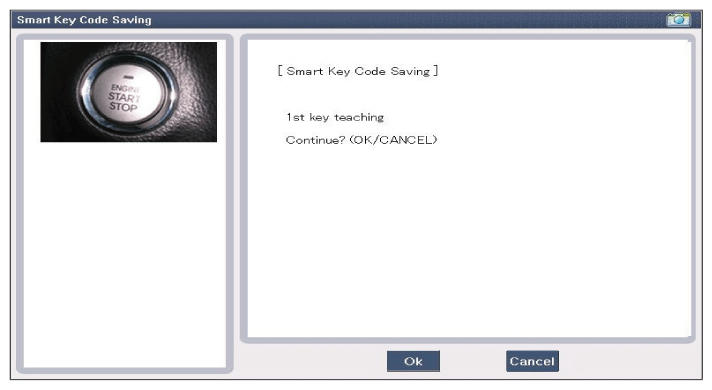

After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

Fig 4: Scantool Display - Smart Key Code Saving (Pin Code)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Scantool Display - Smart Key Code Saving (Message)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 6: Scantool Display - First Key Teaching
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Scantool Display - Smart Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA

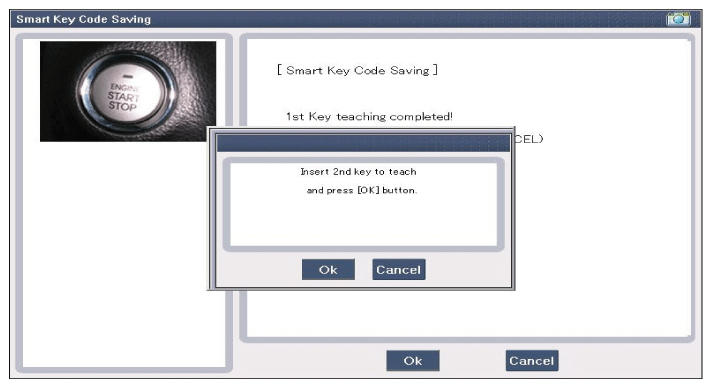

Input the "Pin code" for second key teaching.

Fig 8: Scantool Display - First Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Scantool Display - Confirmation Message
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

Fig 10: Scantool Display - Second Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown as above when key teaching process is completed.
