Assist Power Window Switch

When checking the assist power window switch, select a vehicle type and "IPM" menu.
Select "ADM (Assist Door Module)".
Select option "Input/Output monitoring".

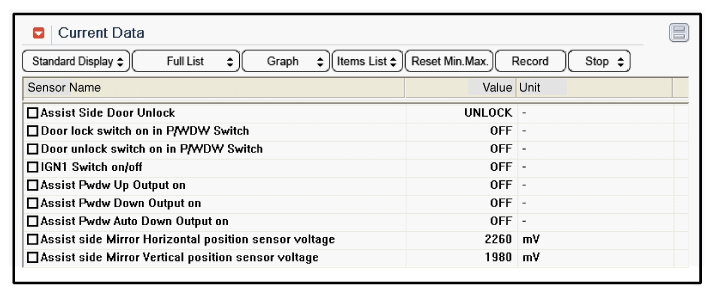

Fig 1: Scantool Display - Current Data
Courtesy of HYUNDAI MOTOR AMERICA
To check the input value of power window switch in force mode, select option "ACTUATION TEST".

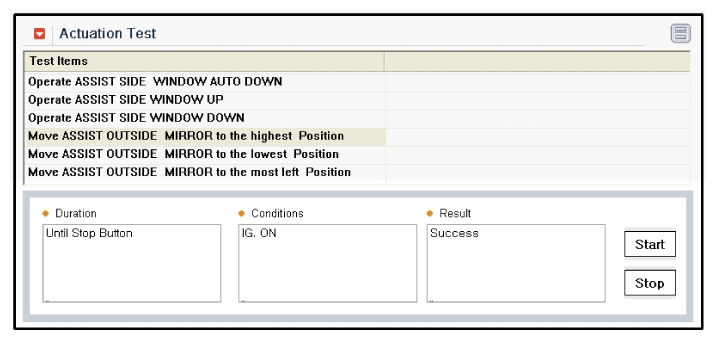

Fig 2: Scantool Display - Actuation Test

Courtesy of HYUNDAI MOTOR AMERICA
