Repair Procedures: Inspection
Battery Diagnostic Flow

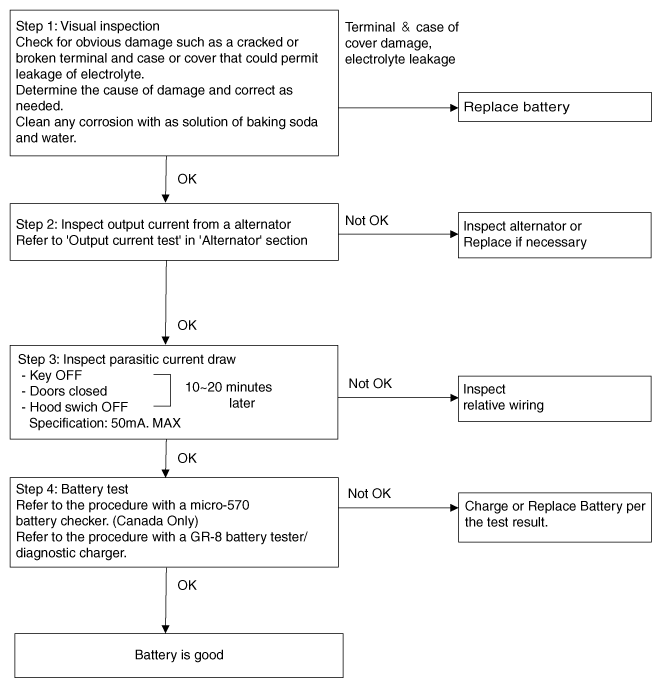

Fig 1: Battery Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
