Components And Components Location: Component

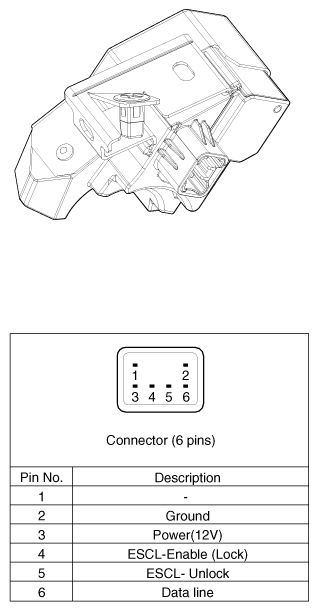

Fig 1: ESCL (Electronic Steering Column Lock) Connector Description Chart
G12093293Courtesy of HYUNDAI MOTOR AMERICA
