Components And Components Location: Component

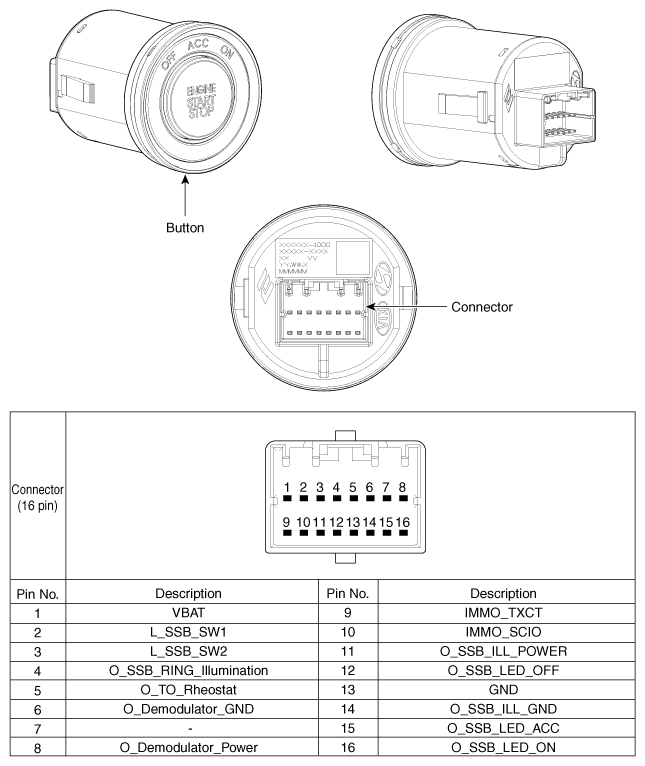

Fig 1: Start/Stop Button Connector Description Chart
G12093291Courtesy of HYUNDAI MOTOR AMERICA
