Components And Components Location: Components

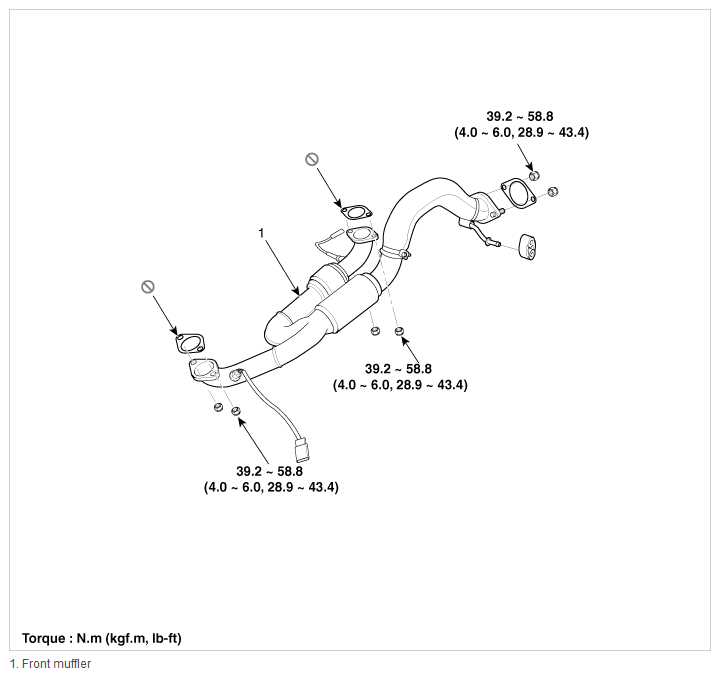

Fig 1: Front Muffler Components With Torque Specification
G12087069Courtesy of HYUNDAI MOTOR AMERICA
