Components And Components Location: Components

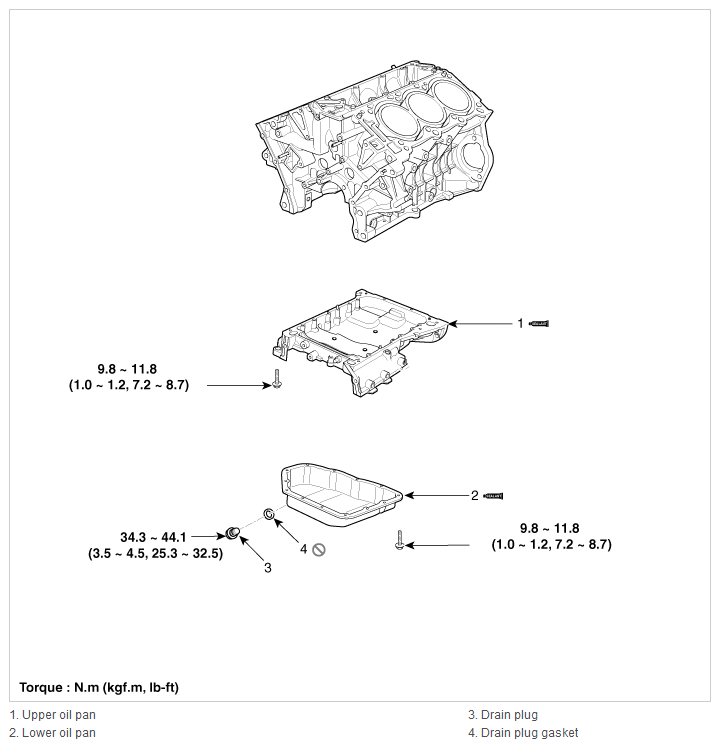

Fig 1: Oil Pan Components With Torque Specification
G12087032Courtesy of HYUNDAI MOTOR AMERICA
