Barometric Pressure Sensor (BPS)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

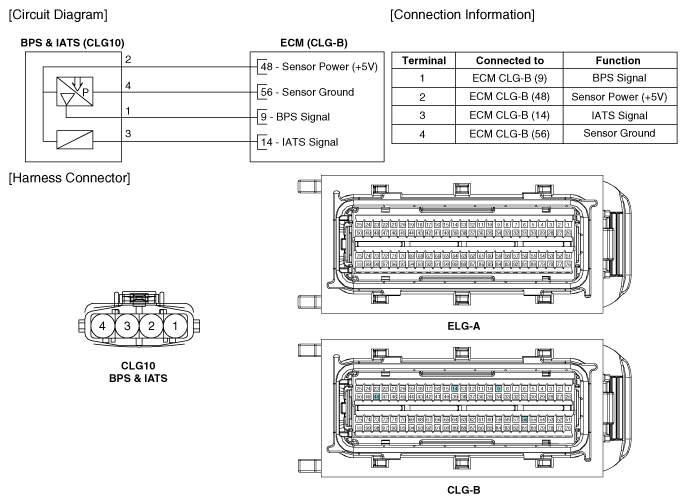

Fig 1: Barometric Pressure Sensor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
