Circuit Diagram

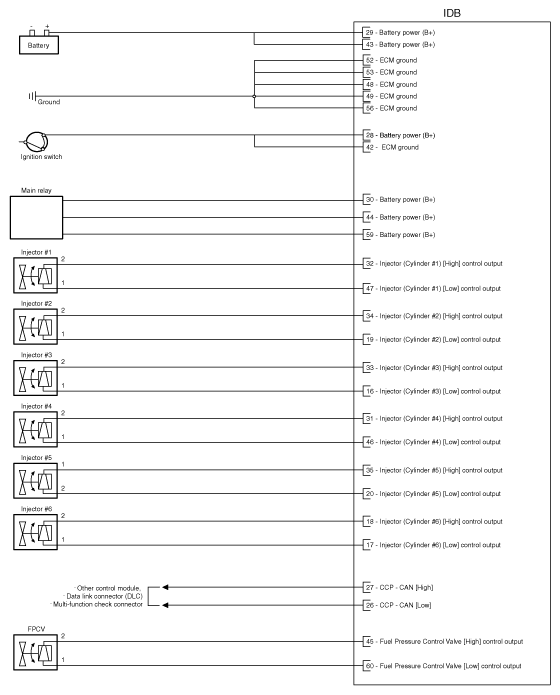

Fig 1: IDB Circuit (1 Of 2)
G12088461Courtesy of HYUNDAI MOTOR AMERICA

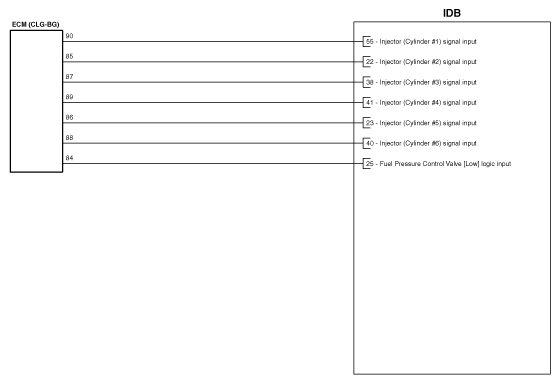

Fig 2: IDB Circuit (2 Of 2)
G12088462Courtesy of HYUNDAI MOTOR AMERICA
