Signal Circuit Inspection

■ Check voltage

1. IG "OFF" and disconnect OTS connector.
2. IG "ON"
3. Measure voltage between signal terminal of OTS harness connector and chassis ground.

   Specification:  Approx. 3.3V

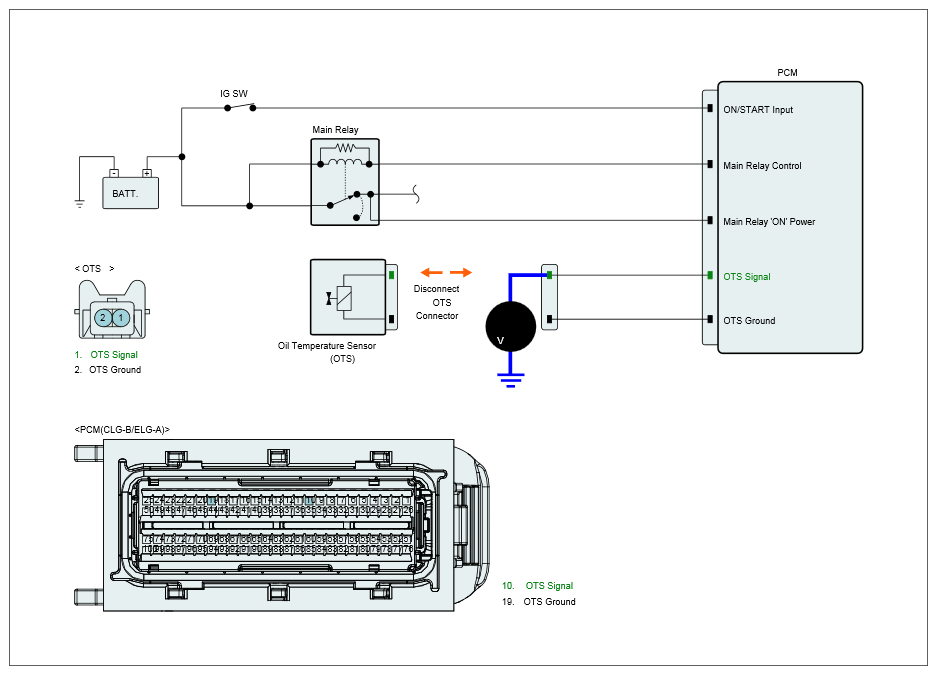

   Fig 1: Measuring Voltage Between Signal Terminal Of OTS Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "Ground Circuit Inspection " procedure.

   NO

   • Go to "Check open in harness" as follow.

■ Check open in harness

1. IG "OFF" and disconnect OTS connector and PCM connector.
2. Measure resistance between signal terminal of OTS harness connector and OTS signal terminal of PCM harness connector.

   Specification:  Below 1 Ω.

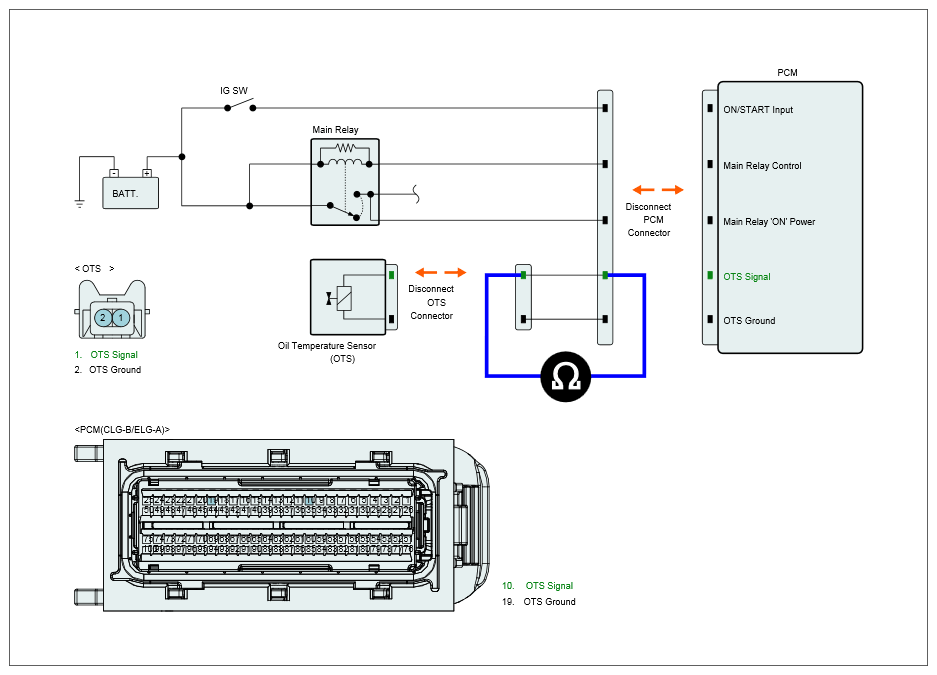

   Fig 2: Measuring Resistance Between Signal Terminal Of OTS Harness Connector And OTS Signal Terminal Of PCM Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "Ground Circuit Inspection " procedure.

   NO

   • Repair open in harness and go to "Verification of Vehicle Repair " procedure.
