Component Inspection

■ Check the condition of HO2S

1. Check HO2S for poor connection or loose terminal.
2. Check if HO2S is ensurely installed.
3. Is the conditions of HO2S normal?

   YES

   • Go to "Check the Signal waveform of HO2S" as follows.

   NO

   • Repair it and then go to "Verification of Vehicle Repair " procedure below.

■ Check the Signal waveform of HO2S

1. IG "OFF" and connect HO2S connector.
2. Start Engine
3. With engine at operating temperature, monitor signal waveform of HO2S with GDS.

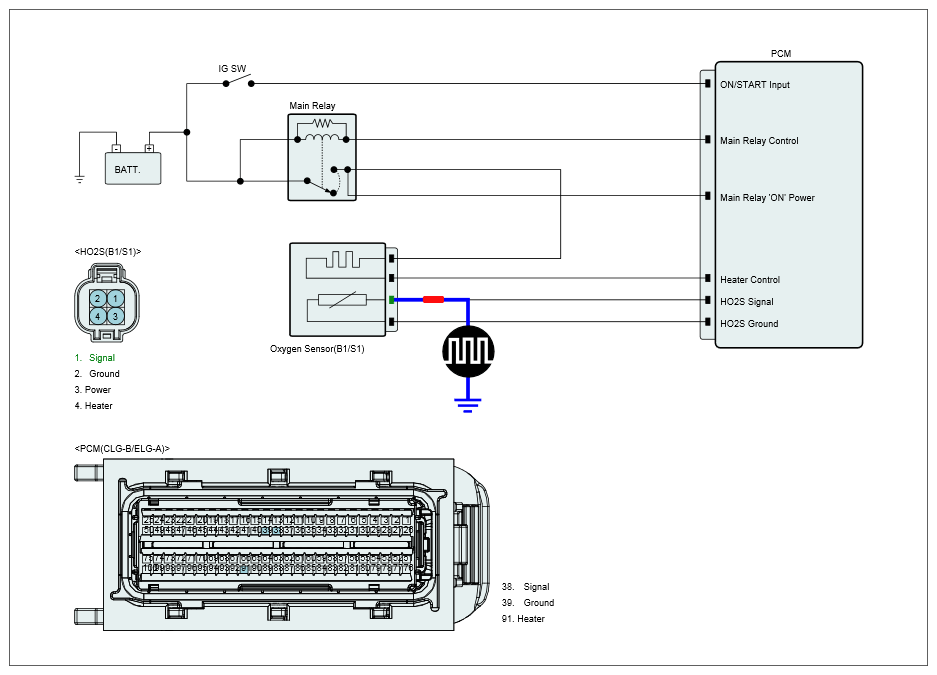

   Fig 1: Checking Signal Waveform Of HO2S

   Courtesy of HYUNDAI MOTOR AMERICA

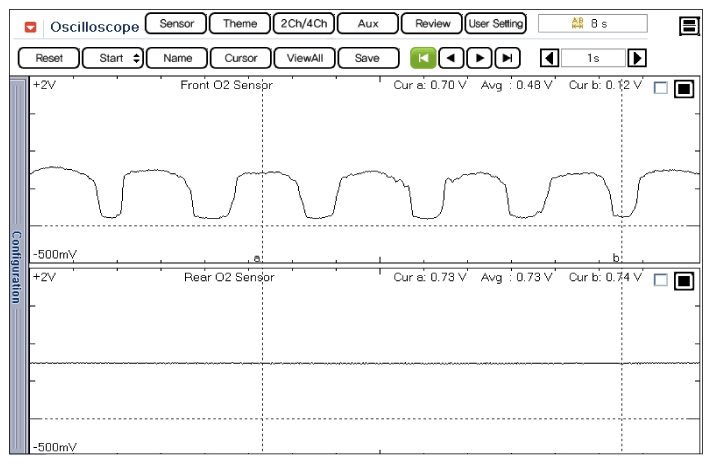

   Fig 2: Screen Display - Normal Waveforms Of Upstream HO2S (Upper) And Downstream HO2S (Lower) (Chassis Ground)

   Courtesy of HYUNDAI MOTOR AMERICA

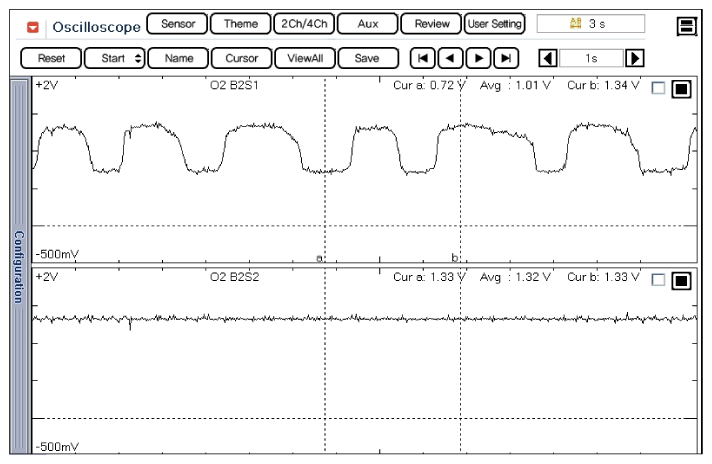

   Fig 3: Screen Display - Normal Waveforms Of Upstream HO2S (Upper) And Downstream HO2S (Lower) (Sensor Ground)

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the sensor switching properly?

   YES

   • Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known - good HO2S and check for proper operation. If the problem is corrected, go to "Verification of Vehicle Repair " procedure.
