Automatic Transaxle Control System
>>
Components And Components Location
>>
Components Location
>>
[Transaxle Components]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Transaxle Components]

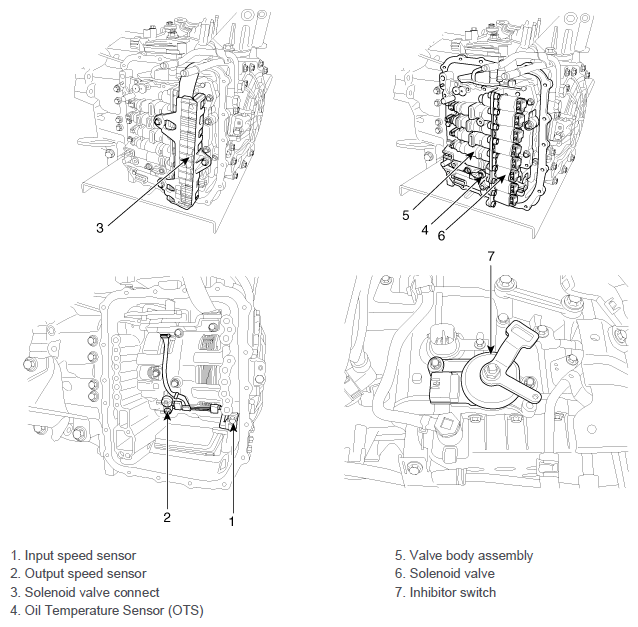

Fig 1: Transaxle Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
