Components And Components Location: Components: Notes

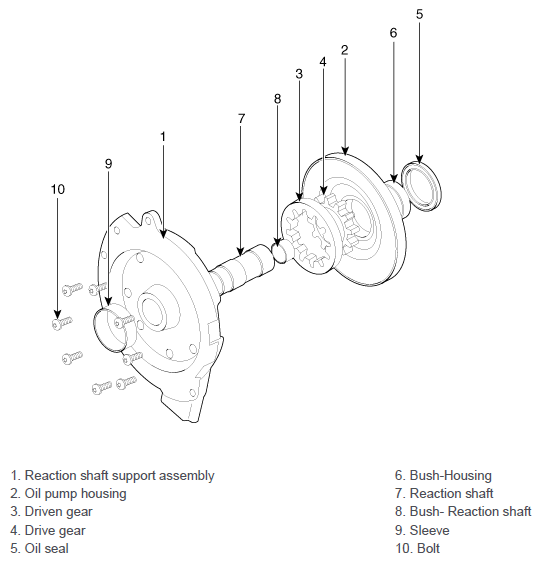

Fig 1: Oil Pump Components

G12088675

Courtesy of HYUNDAI MOTOR AMERICA
