Oil Pump Operation Flow

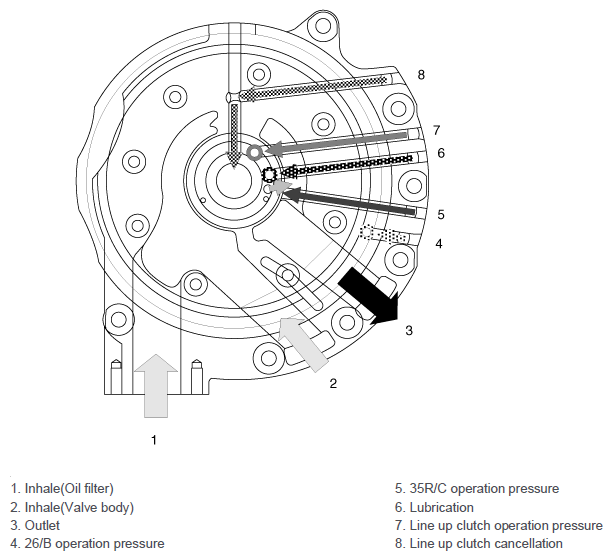

Fig 1: Oil Pump Operation Flow Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
