Circuit Diagram

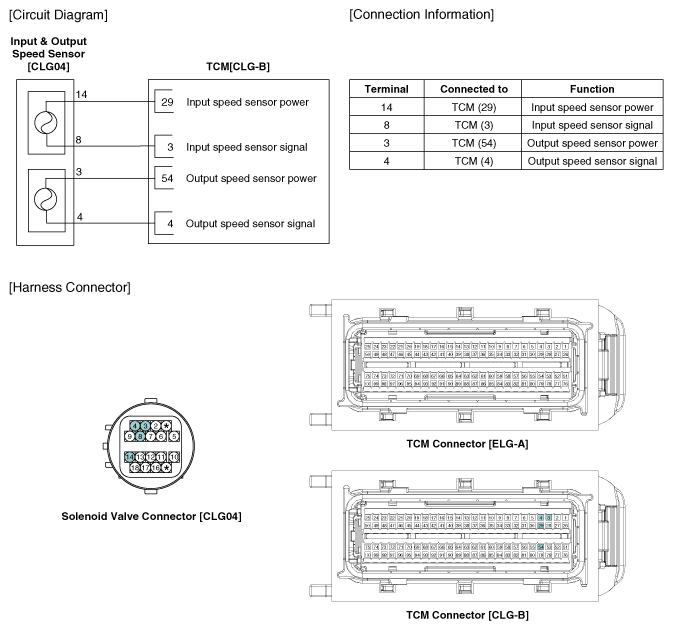

Fig 1: Input Speed Sensor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
