Crankshaft Position Sensor (CKPS)
>>
Troubleshooting
>>
Wave Form
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wave Form

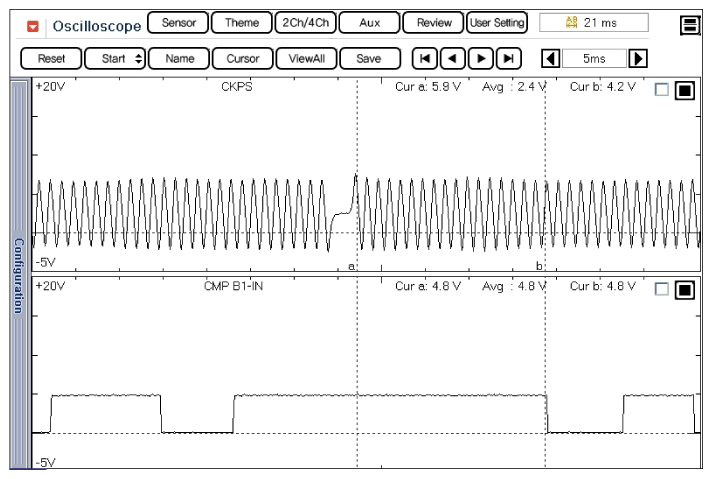

Fig 1: Screen Display - Signal Waveform Of Crankshaft Position Sensor
