Circuit Diagram

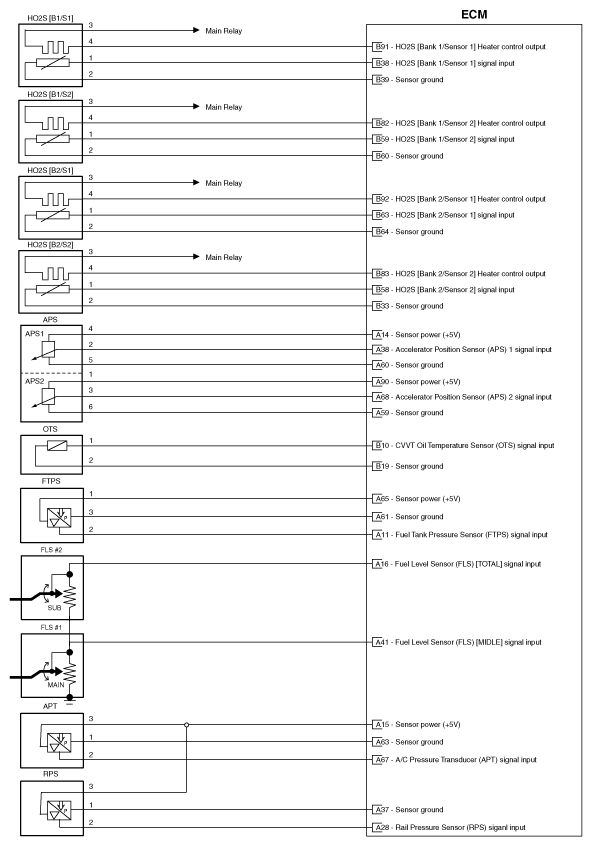

Fig 1: ECM Circuit (1 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

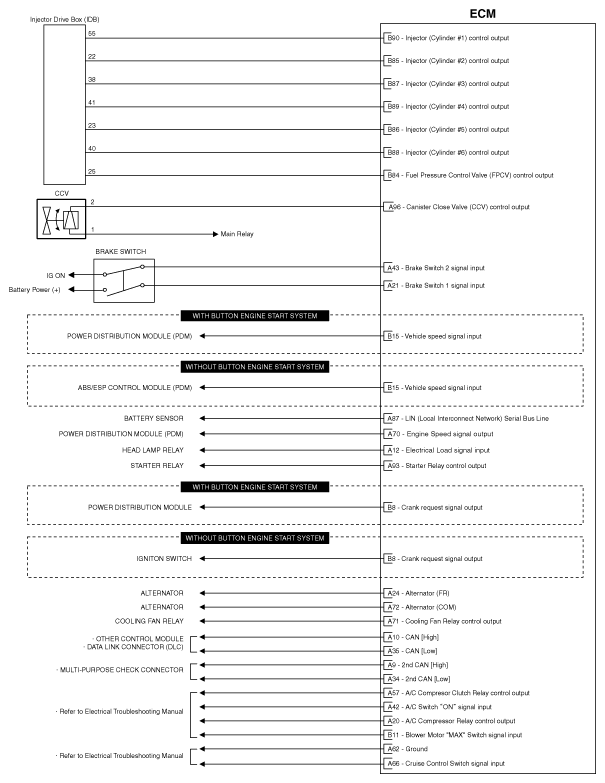

Fig 2: ECM Circuit (2 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

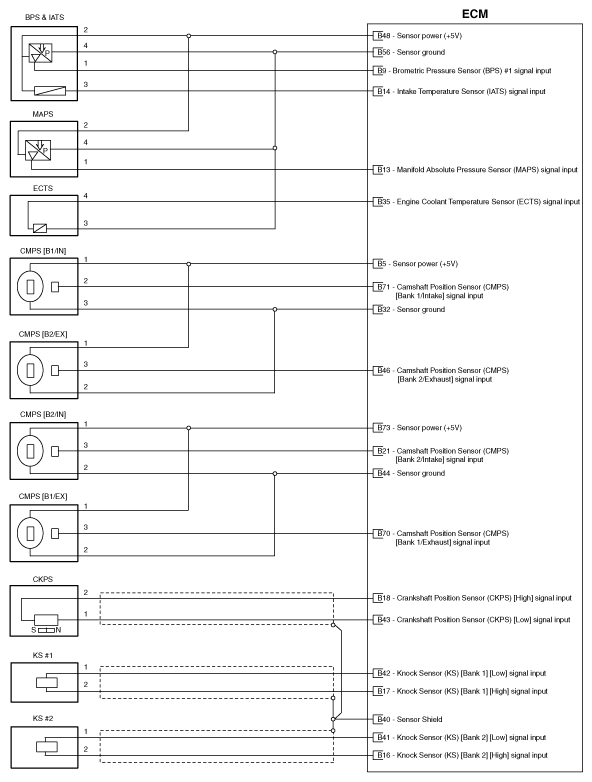

Fig 3: ECM Circuit (3 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

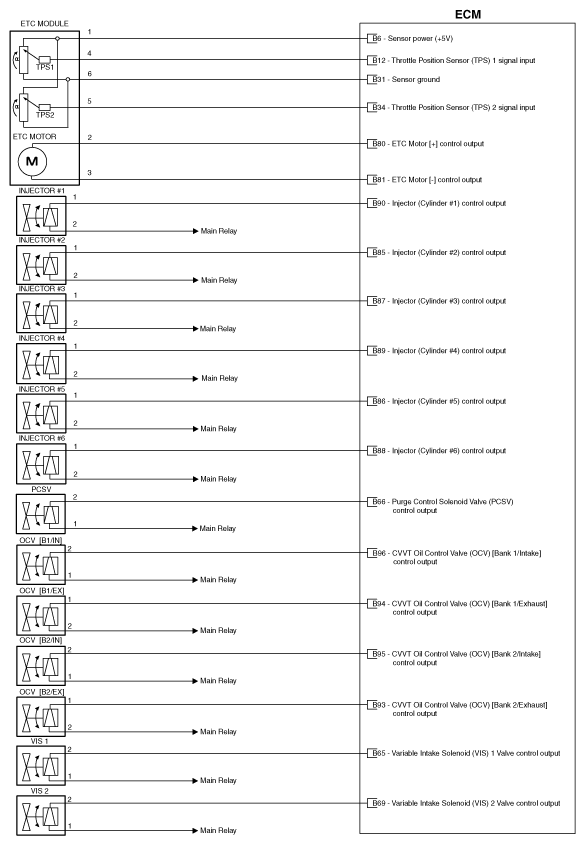

Fig 4: ECM Circuit (4 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

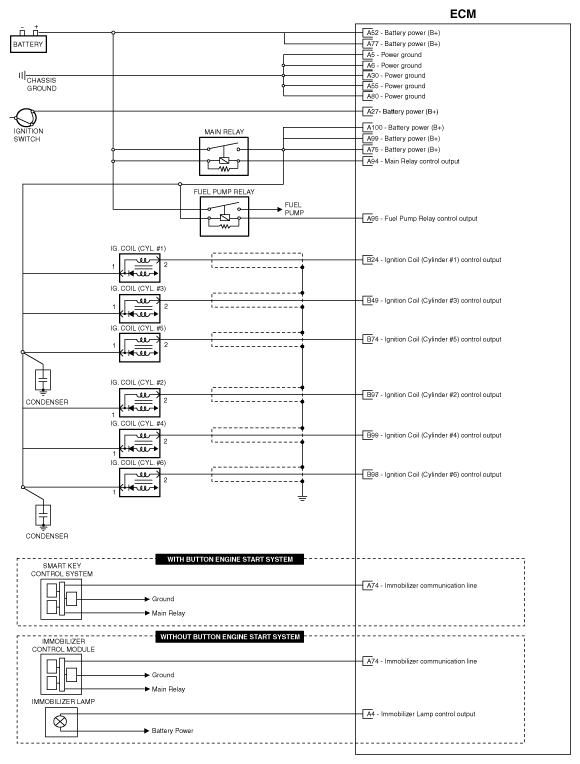

Fig 5: ECM Circuit (5 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA
