Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the VCMA connector (A).

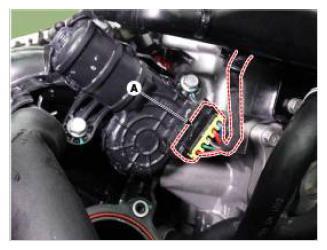

    Fig 1: Disconnecting VCMA Connector
    G12024954Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the VCMA (A) after removing 3 installation bolts.

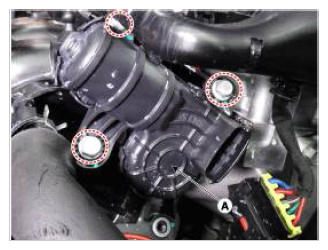

    Fig 2: Removing VCMA Installation Bolts
    G12024955Courtesy of HYUNDAI MOTOR AMERICA
