Components Location

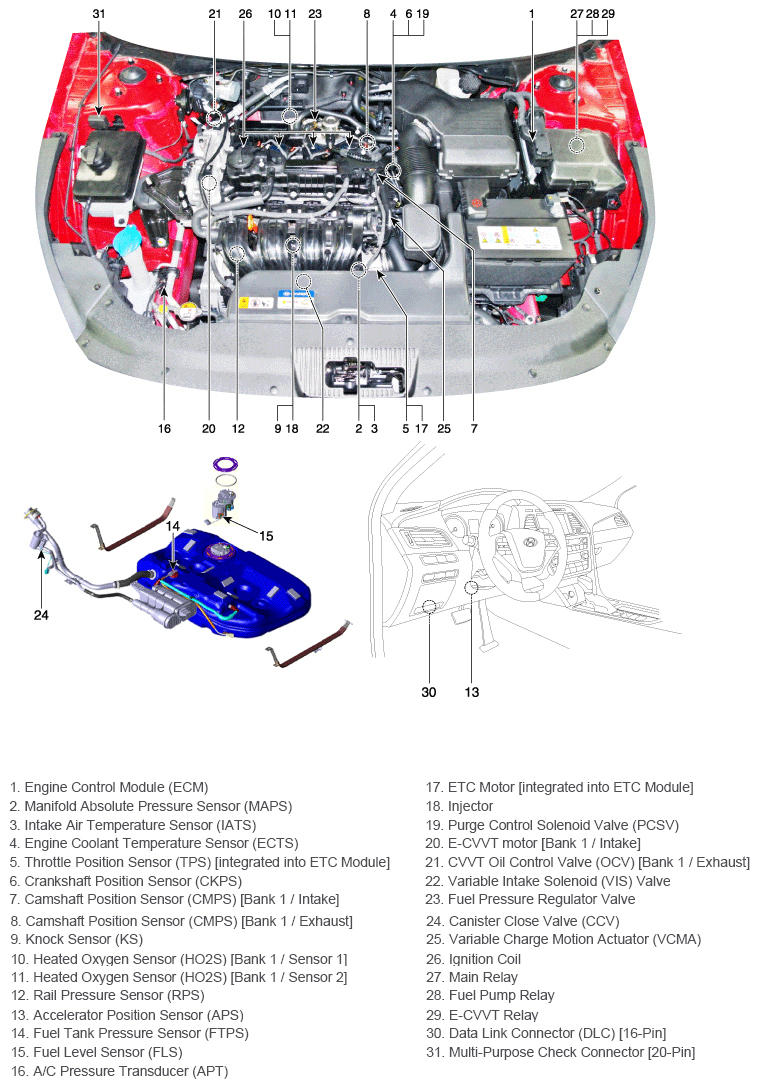

Fig 1: Engine Control System Components (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

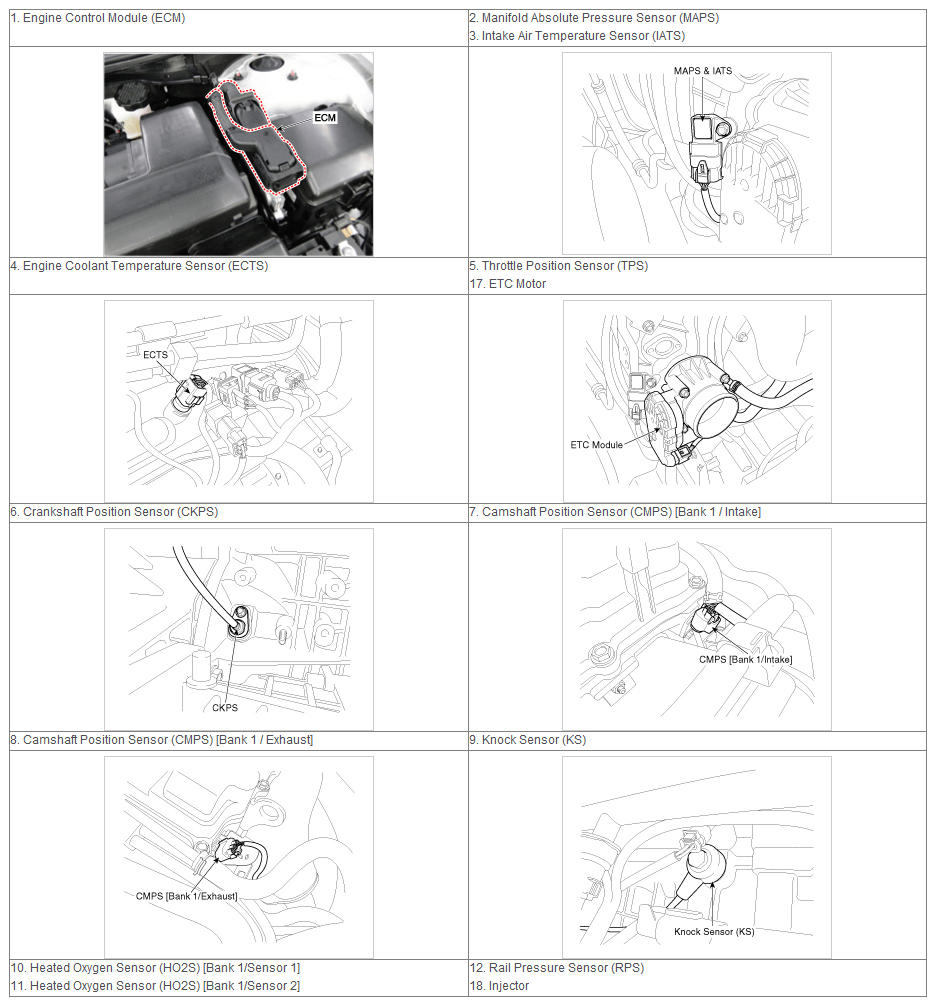

Fig 2: Engine Control System Components (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Engine Control System Components (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

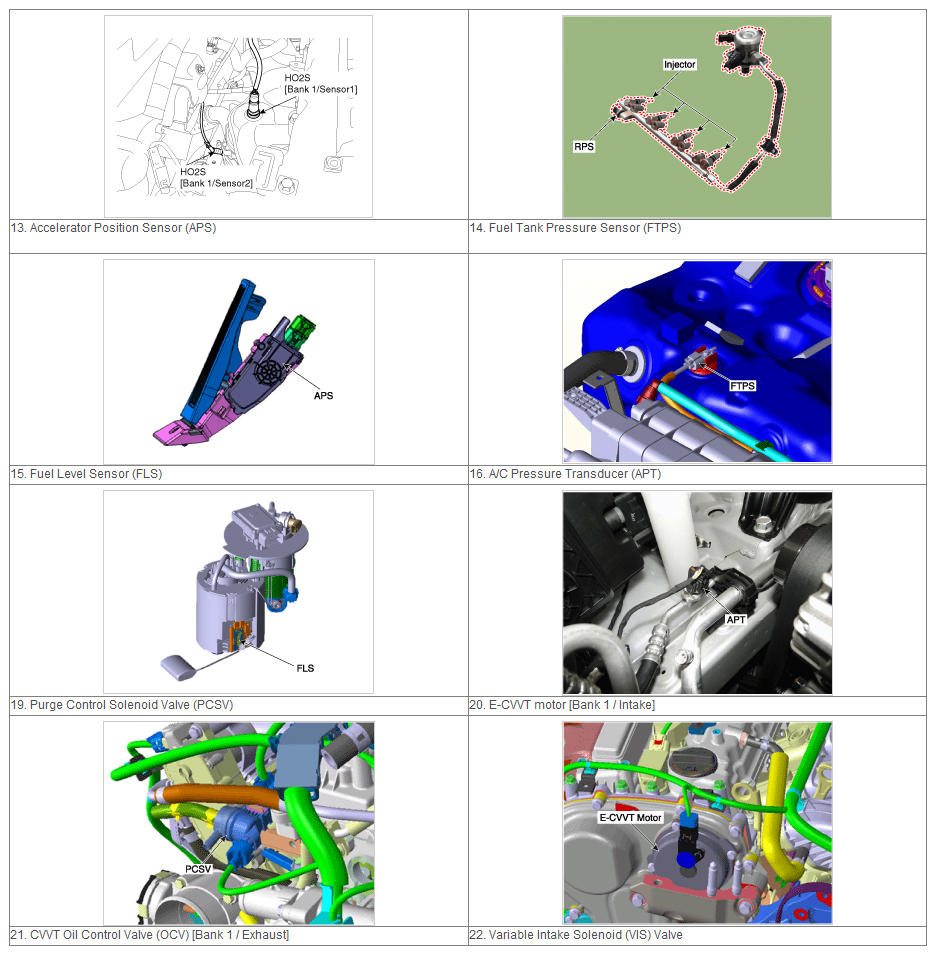

Fig 4: Engine Control System Components (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

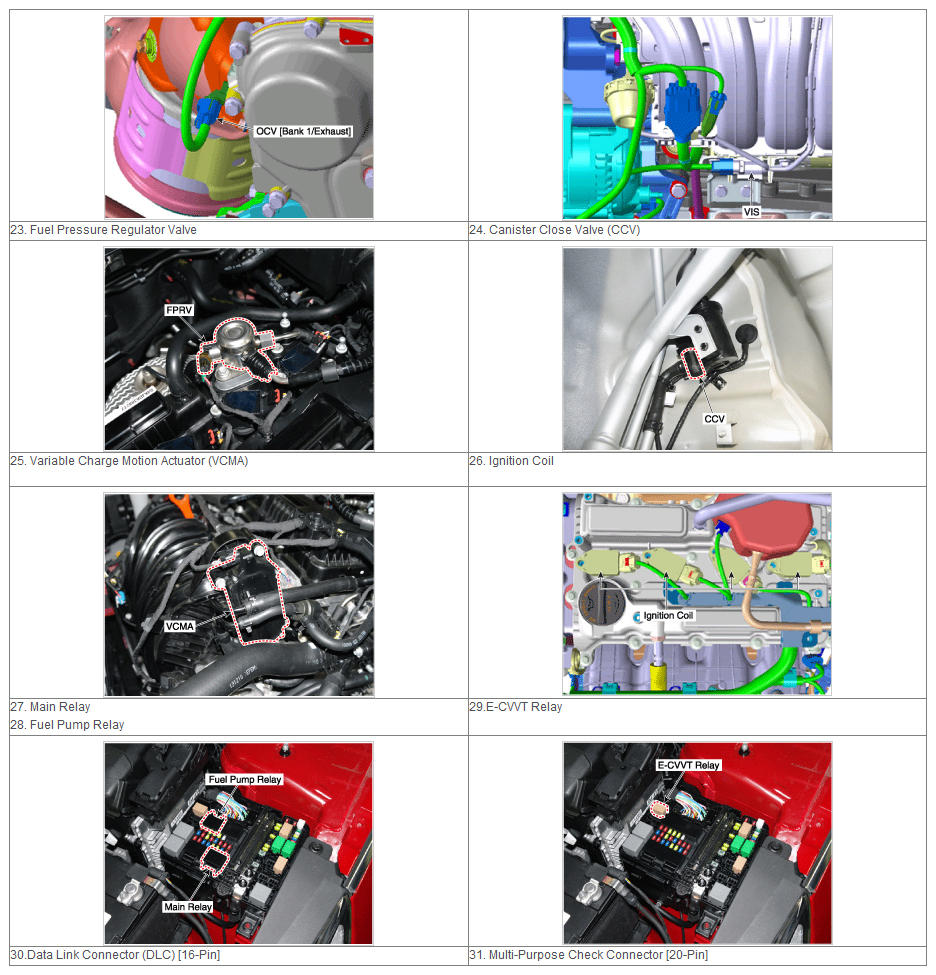

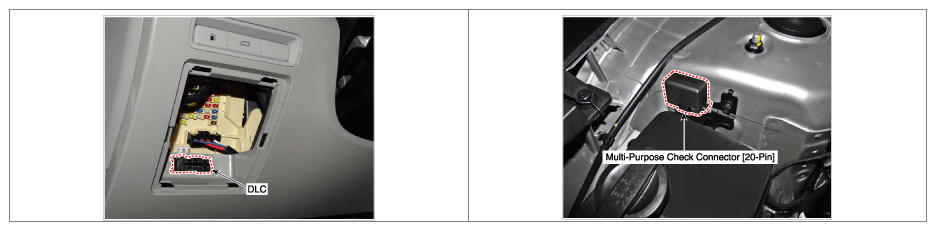

Fig 5: Engine Control System Components (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
