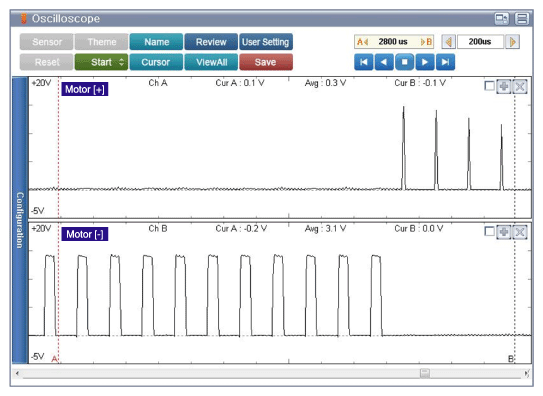

Fig 1: Screen Display - Signal Waveform Of E-CVVT Motor
Courtesy of HYUNDAI MOTOR AMERICA

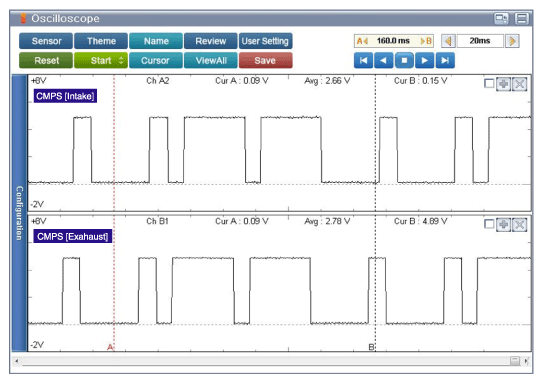

Fig 2: Screen Display - Signal Waveform Of CMPS Intake And Exhaust Side
Courtesy of HYUNDAI MOTOR AMERICA
There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.
