Circuit Diagram

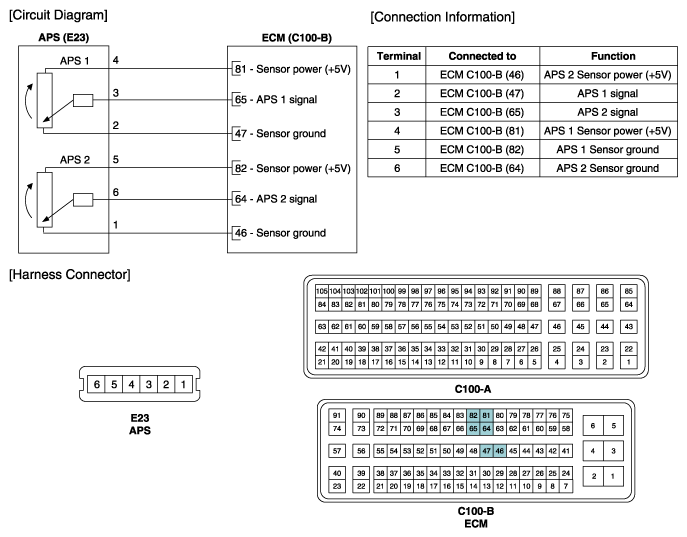

Fig 1: APS Schematic Diagrams and Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
