Components Location

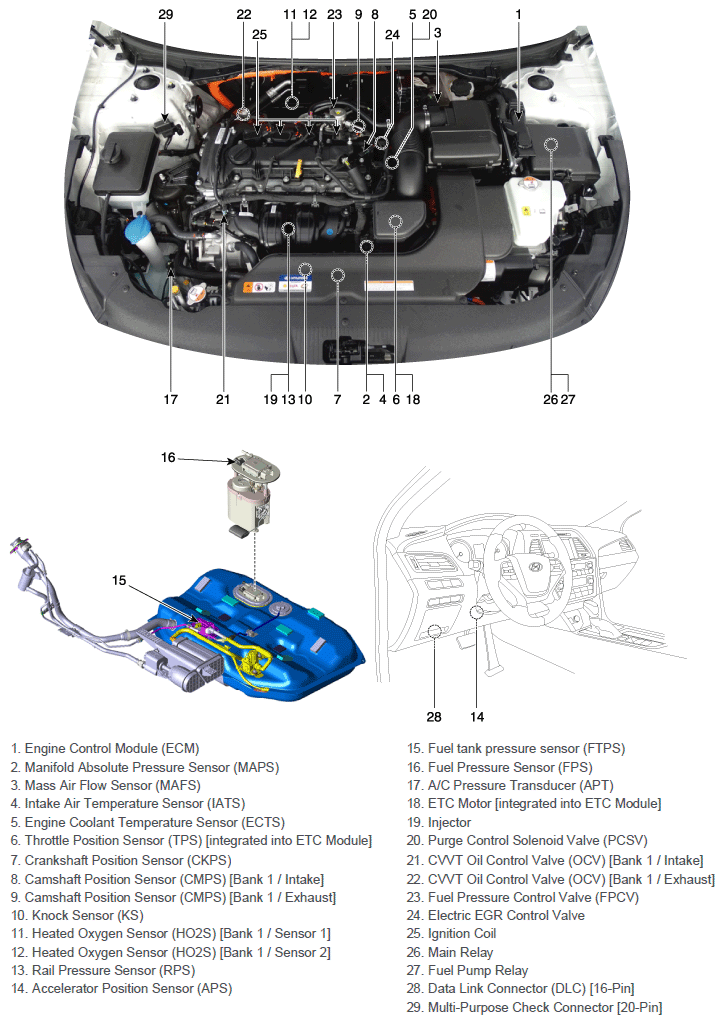

Fig 1: A/C System Components Location (1 Of 4)
G11630949Courtesy of HYUNDAI MOTOR AMERICA

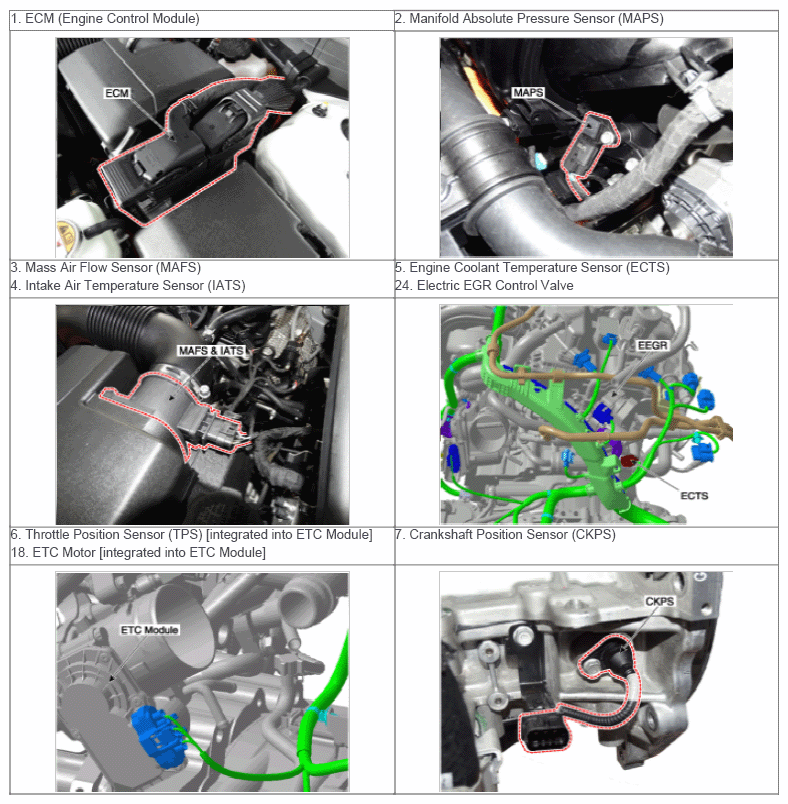

Fig 2: A/C System Components Location (2 Of 4)
G11630950Courtesy of HYUNDAI MOTOR AMERICA

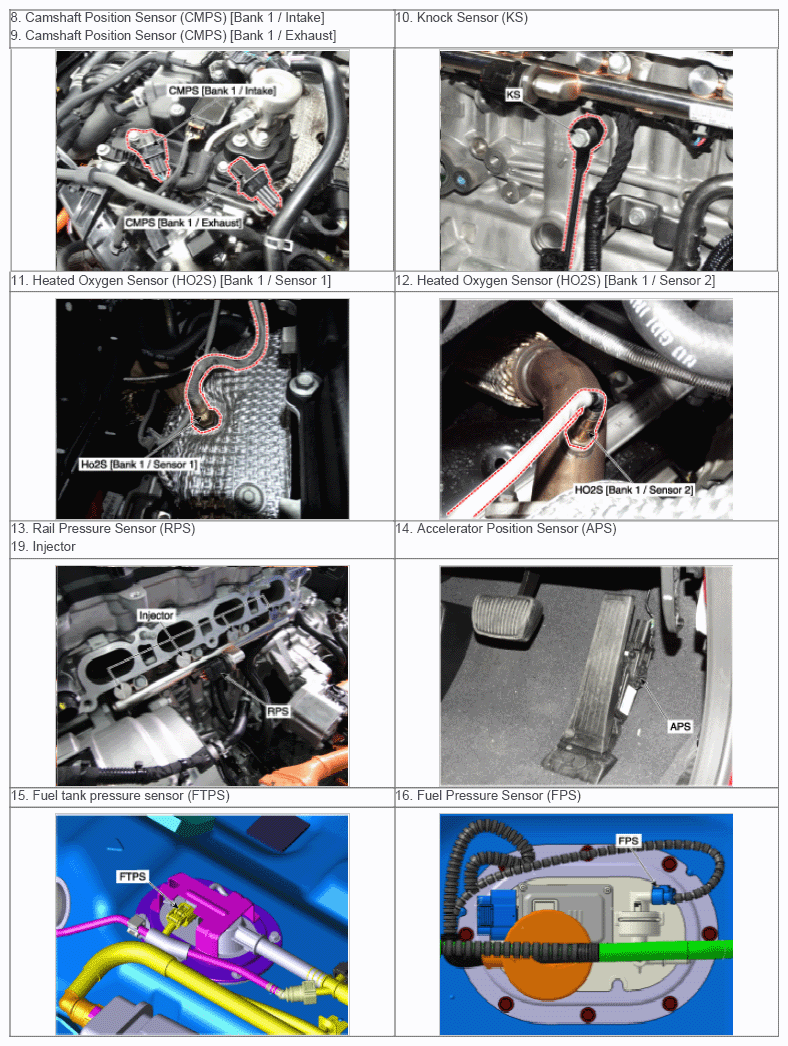

Fig 3: A/C System Components Location (3 Of 4)
G11630951Courtesy of HYUNDAI MOTOR AMERICA

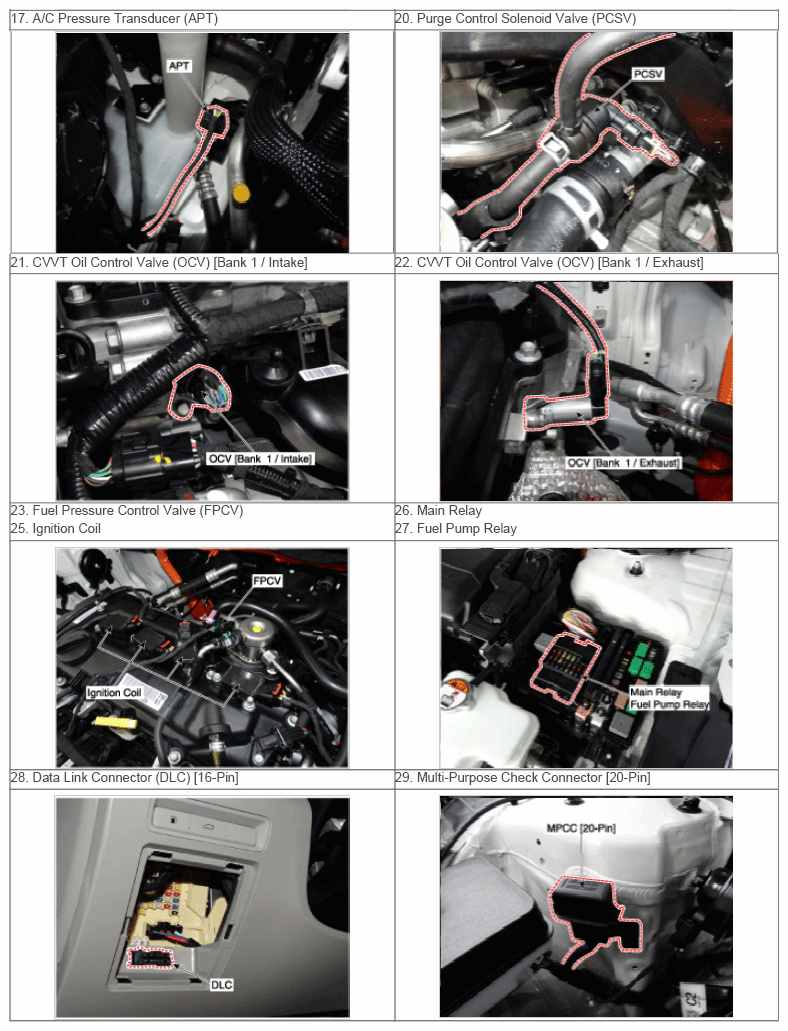

Fig 4: A/C System Components Location (4 Of 4)
G11630953Courtesy of HYUNDAI MOTOR AMERICA
