Components And Components Location: Component

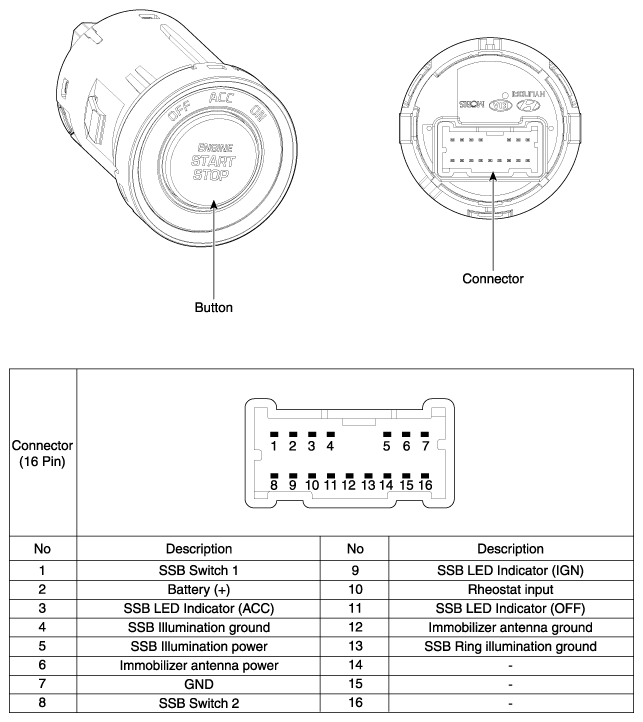

Fig 1: Start/Stop Button, Connector Terminals And Description Chart
G12043331Courtesy of HYUNDAI MOTOR AMERICA
