Wave Form

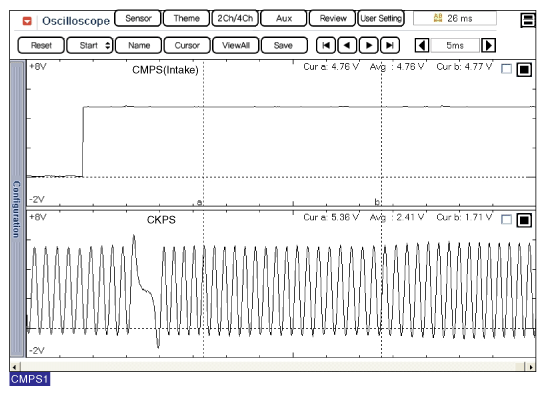

Fig 1: Scantool Display - Signal Waveform Of Camshaft And Crankshaft Position Sensor
G12039382Courtesy of HYUNDAI MOTOR AMERICA

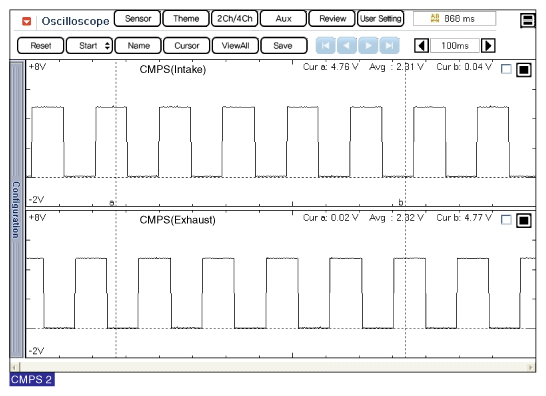

Fig 2: Scantool Display - Signal Waveform Of Camshaft Position Sensors
G12039383Courtesy of HYUNDAI MOTOR AMERICA
