Circuit Diagram

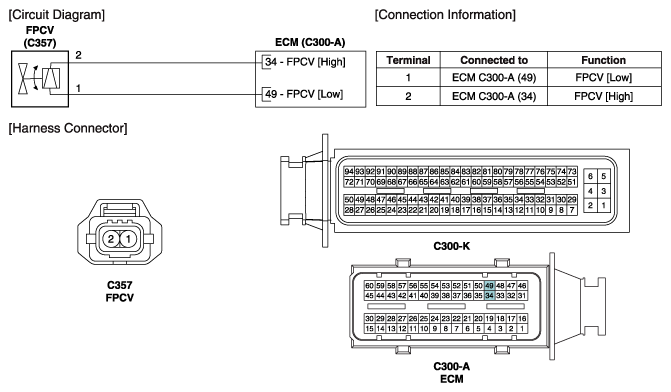

Fig 1: Fuel Pressure Control Valve Circuit, Connector Terminals And Description Chart
G12039442Courtesy of HYUNDAI MOTOR AMERICA
