Circuit Diagram

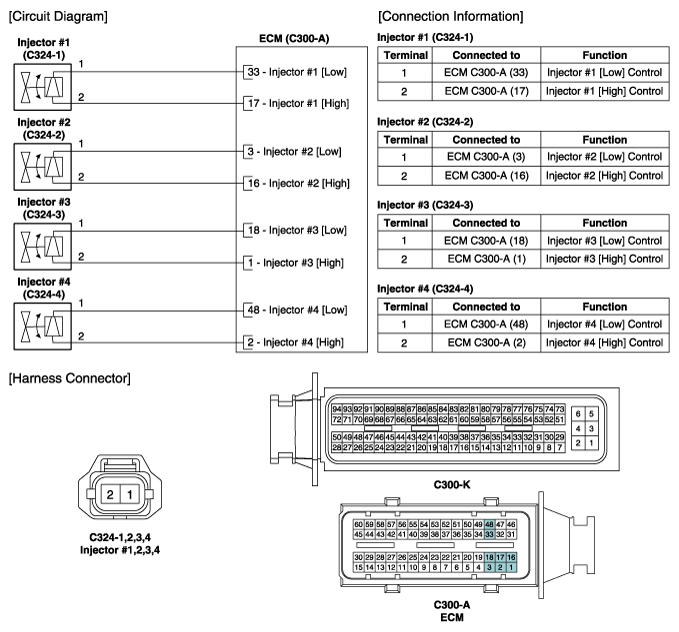

Fig 1: Injector Circuit, Connector Terminals And Description Charts
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
