Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.
    Fig 1: Locating Key Warning Switch Connector
    G12043334Courtesy of HYUNDAI MOTOR AMERICA

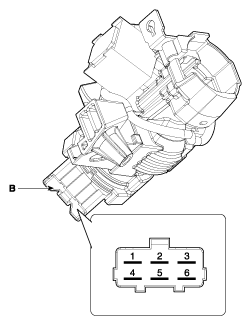

    Fig 2: Locating Ignition Switch Connector
    G12043335Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

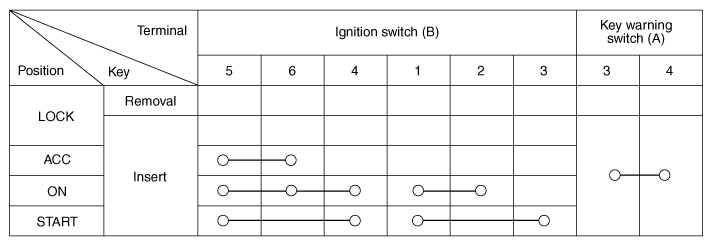

Fig 3: Ignition Switch Connector Terminals Continuity Chart
G12043336Courtesy of HYUNDAI MOTOR AMERICA
