Hyundai
>>
2017
>>
Veloster Base, Automatic DCT Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L GDI
>>
Engine Control Module (ECM)
>>
Schematic Diagrams
>>
Harness Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Harness Connector

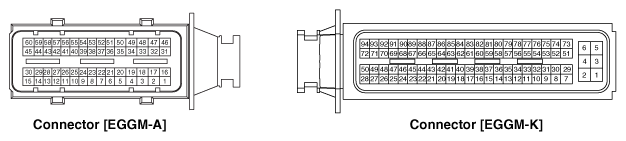

Fig 1: Engine Control Module Connector Terminals
