Circuit Diagram

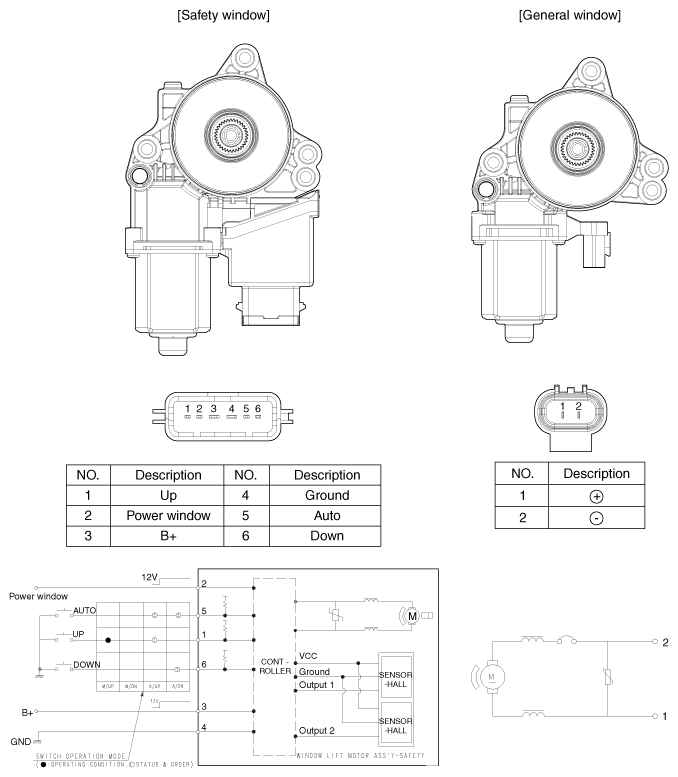

Fig 1: View Of Power Window Motor & Circuit Diagram
G12126418Courtesy of HYUNDAI MOTOR AMERICA
