Veloster Base, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L GDI
>>
Components And Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location

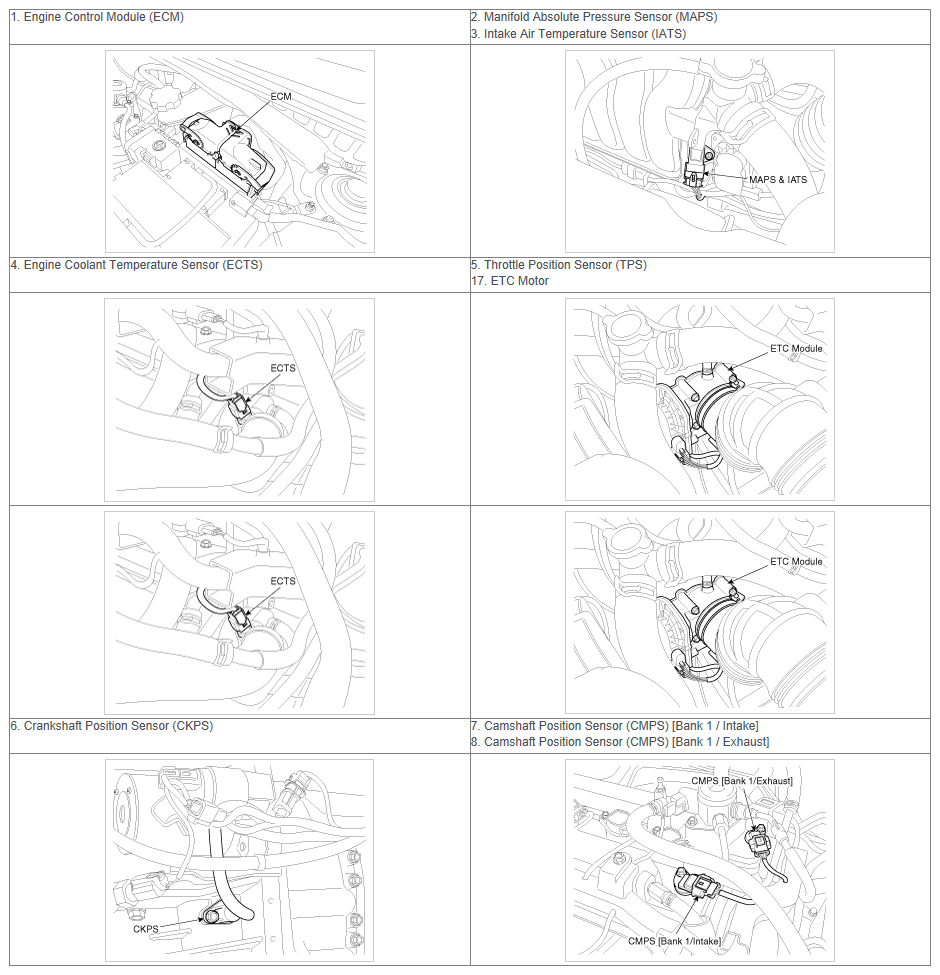

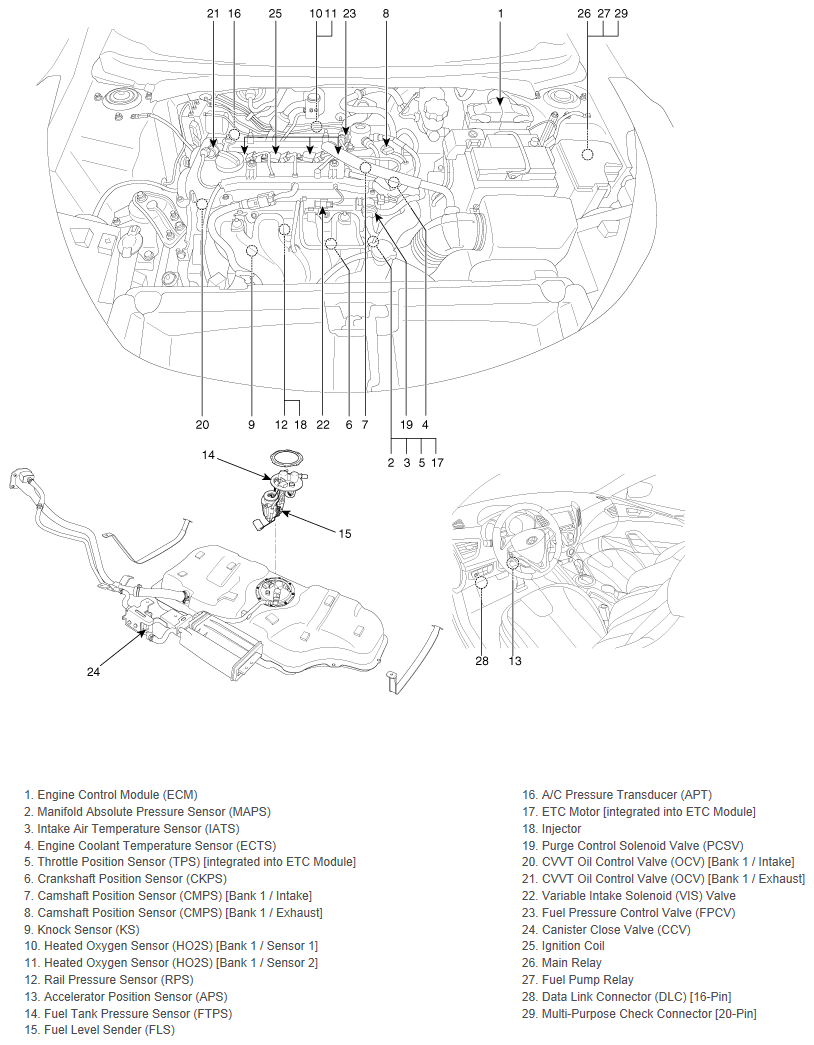

Fig 1: Engine Control System Components (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

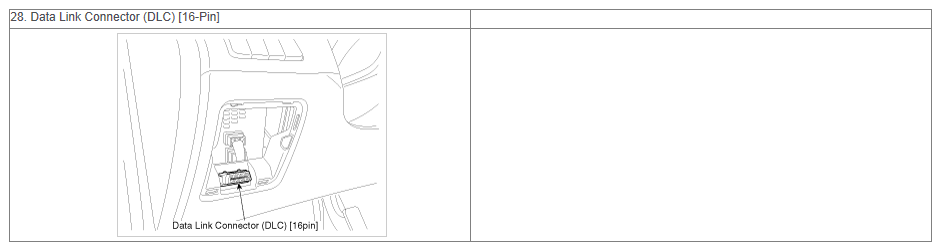

Fig 2: Engine Control System Components (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

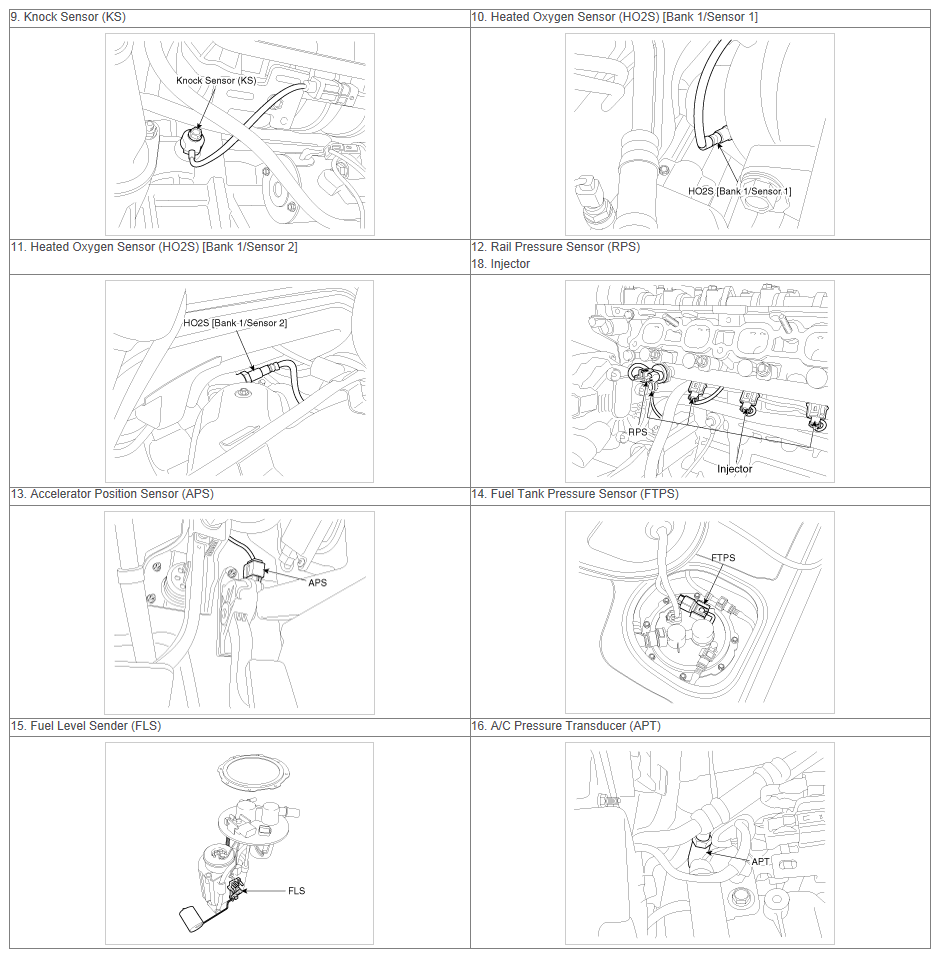

Fig 3: Engine Control System Components (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

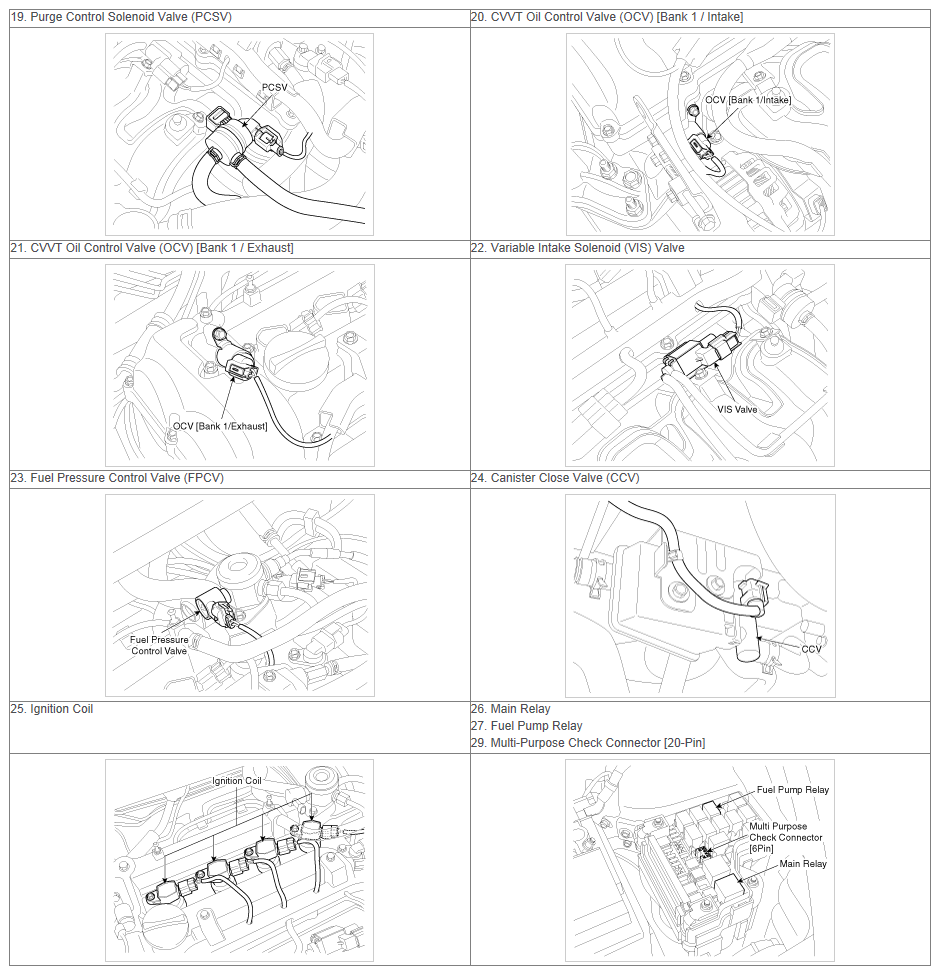

Fig 4: Engine Control System Components (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 5: Engine Control System Components (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
