Circuit Diagram

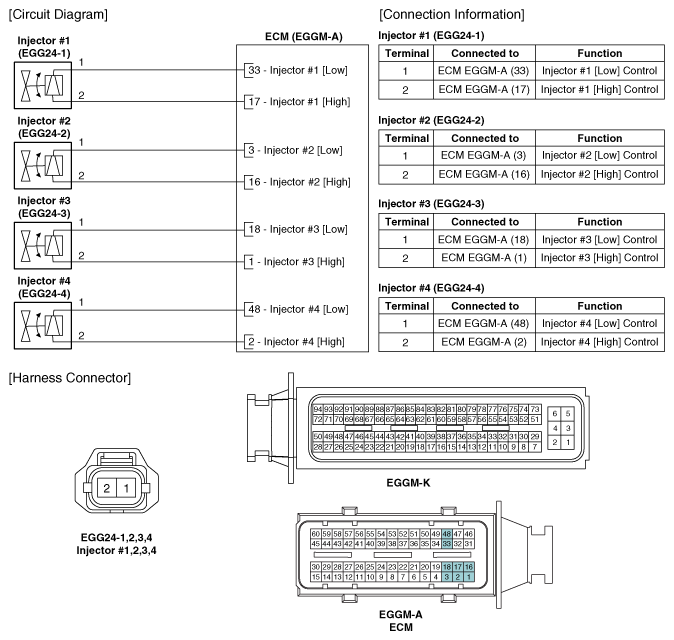

Fig 1: Injector Circuit And Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
