Spark Test

Remove the engine cover (A).

Fig 1: Locating Engine Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the ignition coil connectors (A).

Fig 2: Locating Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Fig 3: Pulling Lock Pin & Pushing Clip
Courtesy of HYUNDAI MOTOR AMERICA
Remove the ignition coils (A).

Fig 4: Removing Ignition Coils With Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the injector connector or extension connector (A).

Fig 5: Locating Injector Connector Or Extension Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a spark plug socket, remove the spark plug.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

Fig 6: Grounding Spark Plug To Engine
Courtesy of HYUNDAI MOTOR AMERICA
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the fuel pump connector. Crank the engine for no more than 5~10 seconds.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Install the ignition coil.
Tightening Torque :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

NOTE: When inserting ignition coil into the cylinder head cover for spark plug to be inserting ignition coil, the sealing cap of ignition coil must be mated totally with inner side of cylinder head.
Reconnect the ignition coil connectors.

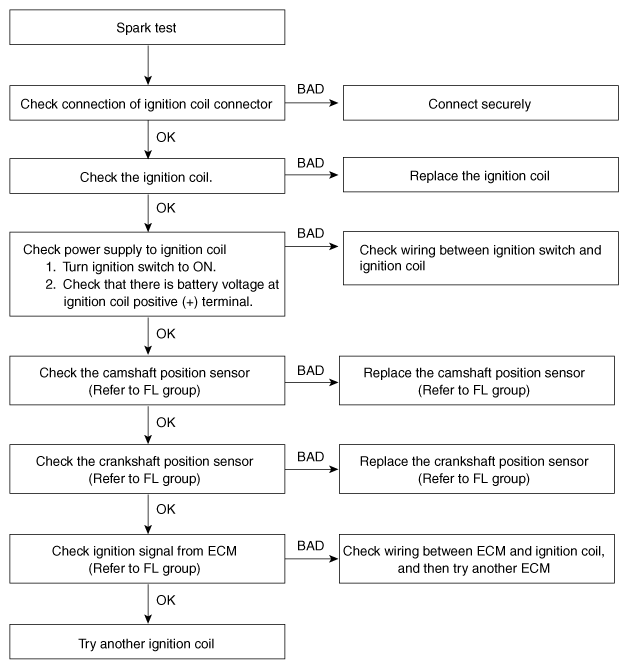

Fig 7: Ignition System Test Flow Chart

Courtesy of HYUNDAI MOTOR AMERICA
