Components And Components Location: Components

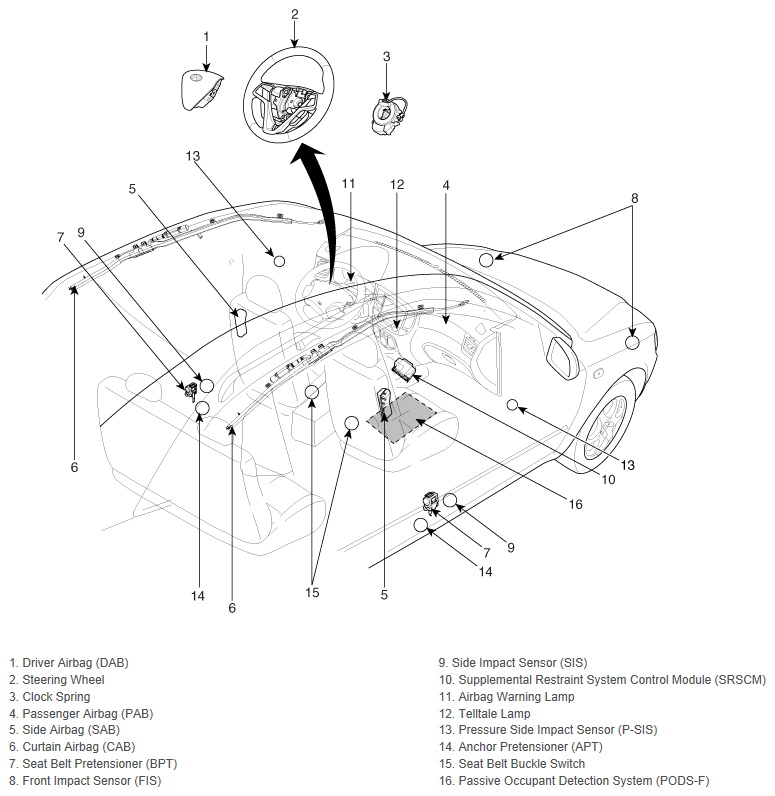

Fig 1: Vehicle Body Components
G12125471Courtesy of HYUNDAI MOTOR AMERICA
